Small Room Bundle 1.0S Automatic Cable Tie Machine

Small Room Bundle 1.0S Automatic Cable Tie Machine

  • High Light

    1.0S Automatic Cable Tie Machine

    ,

    1.0S Auto Cable Tie Machine

    ,

    9mm Auto Cable Tie Machine

  • Name
    Automatic Cable Tie Machine
  • Bundle Speed
    1.0S/cable Tie
  • Bundle Productivity
    1600pcs/h(Including Auxiliary Time)
  • Cable Ties Model
    T36100
  • Cable Ties
    W3.6 * L100mm ( Loose Nylon Ties)
  • Bindind Diameter
    9mm - 13mm
  • Power Supply
    AC220V, 50/60Hz, Different Plugs
  • Pneumatic Pressure
    5kg/cm2
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Swift
  • Certification
    CE, RoHS
  • Model Number
    SWT36100M
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    10 - 15days
  • Payment Terms
    T/T payment
  • Supply Ability
    100pcs/month

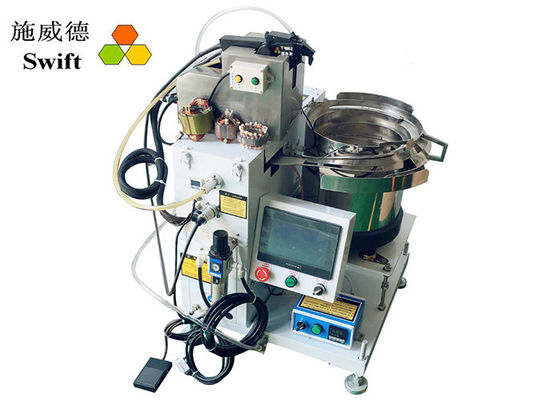

Small Room Bundle 1.0S Automatic Cable Tie Machine

Small Room Bundle Saving Cost Of Automatic Cable Tie Machine



Automatic cable tie machine SWT36100M is suitable for bundling objects which has small room for cable tie going through.



Features of automatic cable tie gun



1. Use loose cable ties, T36100, width 3.6 * length 100mm.



2. Diameters of products bundled: 9mm – 13mm



3. Bundle speed is 1.0S per cable tie.



4. Bundle productivity: 1200pcs/h(Including auxiliary time)



5. Voltage: AC220V, 50/60Hz; Pneumatic pressure: 5kg/cm²



Working process



1. Working principle: nylon cable ties are put into the vibration bowl. They would be rearranged one by one. The sensor detects the first cable tie near it then the cable tie would be transferred to the feeding tube. Once operator touches the trigger, cable tie would be sent to the tie gun and automatically wrap, tighten and cut off.



2. Operation process: put nylon cable ties in the feeder bowl – rearrange cable ties – touch the trigger in the tie gun – finish bundle – collect the waste into a box.



Technical data of nylon cable tie machine



Model SWT36100M Remark
Bundle speed 1.0S
Applicant cable tie model T36100
Applicant cable tie size W3.6mm * L100mm * T1.1mm
Min banding Dia. Ø9 mm
Max banding dia. Ø13 mm Related to product’s material and shape
Maximum tension force 8kg 2-8kg are adjustable
Bundle productivity 1200 pcs/h Related to product’s size and the auxiliary time
Electrical power Host: AC 220V, 50/60 Hz
Tie gun: DC 24V(automatic switching)
Pneumatic pressure 5 Kg/ cm²
Power 1KW
Weight Host:146 kg with wheels
Tie gun: 6kg
Size Host: L690 * 670 * 670mm
Gun: L331 * W282 * H189mm
Certificate CE & RoHS



Advantages of automatic cable tie guns



1. One automatic cable tie gun can save workers’ cost.



2. 5 million cycles maintenance free



3. High reliability: 99.9%-99.99%



4. 100% components in the tie gun are made of high hardened steel, no plastic parts.



5. Automatically collecting the waste into a tank or box.



6. Auto detecting jammed cable ties and cleaning them.



7. Auto alarm if have something wrong.



Small Room Bundle 1.0S Automatic Cable Tie Machine 0



About packing



Item Package Qty Packing size G.W./kg N.W./kg
The host and others Wooden case 1 76*72*85cm 99kg 74kg
The bowl Wooden case 1 68*56*65cm 67kg 55kg
Nylon cable ties T36100 Carton box 1 54*37*29cm 14kg 13kg



About delivery



NO. Automatic cable tie machine Nylon cable ties
Lead time 10-15working days 10days
Shipment By air/sea By air/sea
Package Wooden cases Carton boxes



FAQ



1. Can I use this kind of automatic cable tie machine to bundle simple wire harness?



We don’t suggest you using it because we design it for some special products. You could choose other machines to bundle simple harness.



2. Do you have a machine available for demo, loan or rental?



No, but you could send your products to our factory and we will test them by using our machines.



3. Are other cable tie brands compatible with your equipment?



No, cable ties are different. And automatic cable tie machines ask for good quality nylon cable ties.



4. Where is your factory?



Our factory is located in Shenzhen, China.



5. What should I do if the machine has anything wrong?



Pls contact our sales team. We would guide you how to solve them. We promise 5 million cycles maintenance free.
