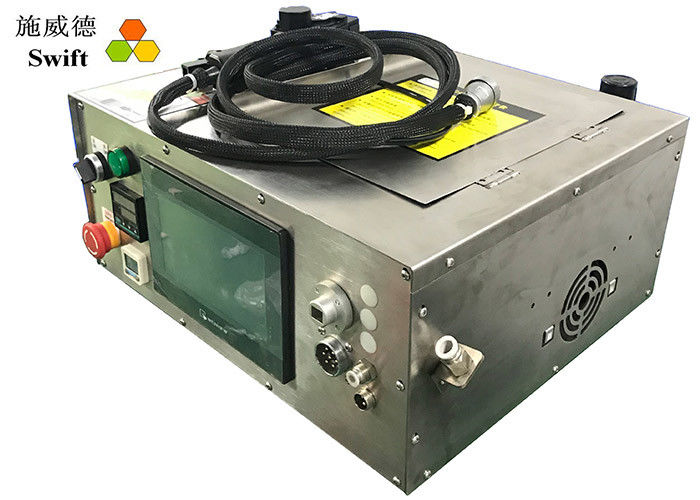

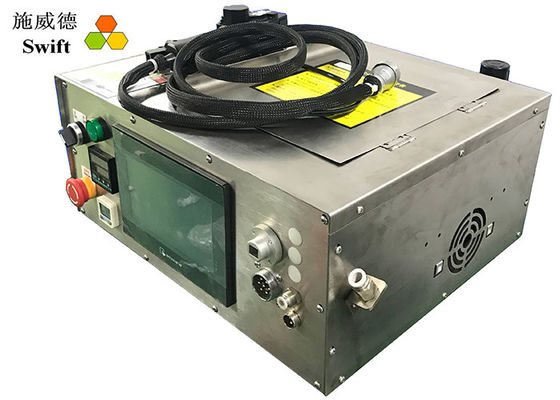

Stainless Steel Shell 1.0S 80N Automatic Tie Wrap Machine
1S/pcs Operation Speed 5,000pcs Reel Cable Ties For Handheld Tie Gun SWT25100HC
1. Applicant nylon cable ties: C25100, 5,000pcs nylon ties in a reel.
2. Bundle capacity: 2,400 - 3,000pcs/hour. The bundle speed is 1second per cable tie but operator may spend 1S-1.5S to hold on wire harness or other products.
Features of nylon cable tie machine
1. There are 5,000pcs cable ties in reel. Operator doesn't have to put nylon cable ties into the bowl often.
2. Handheld tie gun is light, the weight is 0.86kg. And it is comfortable to hold and operate.

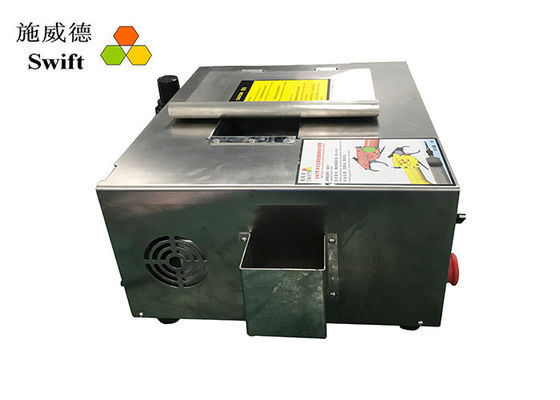

3. The waste could be collected into a box.
4. With PLC control system and touch screen. It is easy to manage the parameters.
5. If there is any cable ties jammed in the hose or tie gun, the automatic cable tie machine would stop running and clean them, then restart.
6. Air source supply: 5kg/cm²; Voltage: AC220V, 50/60Hz
7. Shell material: stainless steel(customize)
Specifications of cable tie gun
| Model | SWT25100HC |
| Applicant cable ties | C25100, 5,000pcs cable ties in a reel |
| Cable tie size | W2.5 * L100mm * T1.1mm, |
| Cable ties material | Nylon PA6.6 |
| Min binding Dia. | Ø3 mm |
| Max banding dia. | Ø18 mm |
| Operation speed | 1.0s/cable tie |
| Electrical power | Host: AC 220V, 50/60 Hz, different plugs |
| Tool tie gun: DC24V(automatic switching) | |
| Pneumatic pressure | 5 Kg/ cm² |
| Power | 1KW |
| Maximum tension force | 80N, adjustable |
| Productivity | 2,400 – 3,000 pcs/h |
| Machine shell | The stainless steel(Customize) |
| Structural steel(Standard) |
Application of automatic cable tie machine
1. Wire harness in the board, wire harness in home appliance.
2. Silicone tubes/connectors
3. Copper tubes or others.
Advantages of handheld cable tie gun
1. The automatic cable tie machine can wrap, pull and tighten, cut off nylon zip tie once operator pulls the trigger of the tie gun.
2. The bundle capacity is 2,400 – 3,000pcs in a hour. It is faster than manual bundling.
3. The bundle forces are adjustable from 20N to 80N.
4. There is no vibration bowl. The noise is lower.
About packing
Be packed in wooden case.
| Item | QTY | Packing size | G.W./kg | N.W./kg |
| SWT25100HC/wooden case | 1pcs | 60*57*60cm | 41kg | 31kg |
| C25100 reel cable ties/carton box | 10,000pcs | 47*47*30cm | 7kg | 5.4kg |
About delivery
1. Cable tie machine can be shipped by air/FedEX etc..
2. Delivery time: 10working days. If you need urgent, please talk with our sales team.
FAQ
1. Could I ask for stainless steel shell of auto cable tie machine?
Yes, please tell the sales man if you need stainless steel.
2. Does cable tie machine SWT25100HC pass CE?
3. Do you have service center in other countries?
No, we don't build it. There are clients from Turkey, Brazil, Italy and Poland so on. If have any problems, please free to contact us.
Our products are sold all over the world, you can rest assured.
