Payment & Shipping Terms:
|Bundle Productivity:||3000pcs/h||Bundle Dia.:||Ø2mm - Ø16mm|
|Cable Ties Size:||W2.5mm * L100mm *T1.1mm||Cable Tie Material:||Nylon PA 6.6|
|Bundle Speed:||0.8S||Bundle Forces:||Adjustable|
|Voltage:||AC220V - AC240V, 50/60Hz||Pneumatic Pressure:||3kg/cm²|
PA 6.6 Automatic Cable Tie Machine,
PA 6.6 Auto Cable Tie Machine,
Nylon PA 6.6 Cable Tie Machine

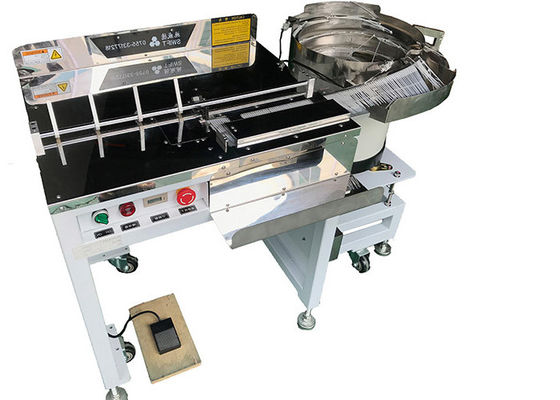

Bundle dia 16mm Nylon PA 6.6 Automatic Cable Tie Machine
Binding Force Adjustable 3,000pcs Cable Ties A Hour Of Automatic Cable Tie Machine
1. Automatic cable tie machine can bundle lots of nylon cable ties in short time.
2. Desktop cable tie gun can bundle simple items without step features only.
Parameters of automatic cable tie machine
|Independent cable tie gun or not||Cable tie jaws fixed in the desktop|
|Cable ties model||T25100|
|Cable tie size||W2.5 * L100mm|
|Cable ties material||Nylon PA 6.6|
|Min banding Dia.||Ø2 mm|
|Max banding dia.||ø16 mm|
|Operation speed||0.8s/cable tie|
|Electrical power||AC 220V, 50/60 Hz, different plugs|
|Pneumatic pressure||3 Kg/ cm²|
|Weight||126 kg, with 4 wheels|
|Size||L1040 * 640 * 750mm|
|Certificate||CE & RoHS|
Features of desktop automatic cable tie machine
1. Using good nylon zip ties, T25100, width 2.5 * length 100mm.
2. Nylon cable tie machine swt25100D can bundle products’ diameter up to 16mm by 100mm length nylon tie wraps.
3. There is no removable cable tie gun.
4. Automatic cable tie machine takes 0.8seconds to wrap, tighten nylon cable ties and cut them off.
5. The waste material would be collected into a box.
1. Simple wire harness or something soft.
2. Desktop automatic cable tie machine can’t bundle items with step feature.
E.g.: Clothes hanger
"x" means that automatic cable tie machine can't tie nylon cable tie in the place.
"√" means that automatic cable tie machine can tie nylon cable tie here.
Note: Desktop automatic cable tie machine is without a independent tie gun so hanger can not be placed 360º.
Advantages of nylon cable tie machine
1. Automatic cable tie machine can finish tying nylon zip ties fast and replace 2 workers or more.
2. The binding forces are adjusted by PE engineer.
3. The binding force is controlled by mechanical device and is more accurate and stable.
4. 1 year warranty and tech support forever.
The machine will be packed in wooden case.
1. Lead time: 12-15working days
2. Shipped by air/FedEx/sea.
1. Can the cable tie machine bundle different sizes nylon cable ties?
No, it can’t.
2. Does the machine have an English manual?
Yes, it has.
3. Can operator adjust the binding force?
Yes, he can but it would be better if he is PE engineer.
