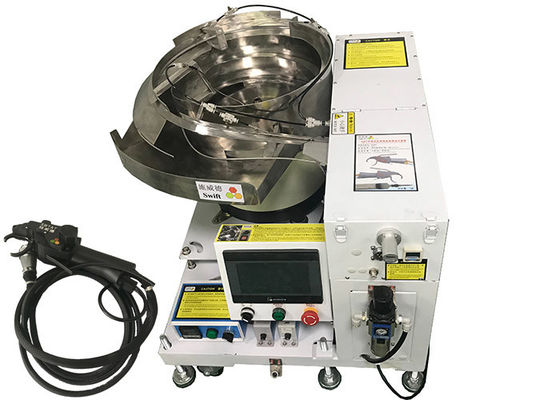

High Efficient SWT36140H Automatic Cable Tie Gun For Bind Custom Wire Harness
Using nylon cable ties T36140, width 3.6mm * length 140mm.
Bundle diameters 3mm - 27mm.
Product features automatic cable tie machine
1. One machine uses one kind of cable ties, such as SWT36140H uses cable ties W3.6 * L140mm.
2. The cable tie cutting tool can bundle nylon cable ties within 1second.
3. The cable tie will be feed into the gun head once pulling the trigger and automatically wrap and cut.
4. Touch screen to operate the machine on/off and set the parameters.
5. When stop machine before out of office, be sure that there is no cable ties left in the vibration bowl.
Product specifications of automatic zip tie machine
| SWT36140H | ||||||
| Size Of cable size | W3.6 * L140mm | Voltage | AC220V,50/60Hz | |||
| Operation speed | 1S / cable tie | The gun V. | DC24V(auto switch) | |||
| Max banding Dia. for wire | Ø27 mm | Power | 1000W | |||
| Max banding Dia. for tube | Ø26 mm | Pneumatic pressure | 5kg / cm² | |||
| Min banding Dia. | Ø3 mm | Certificate | CE, RoHS | |||
| The bending force | 5 kinds of force available | The tensile strength of SWIFT cable ties | 8kg | |||
| Other cable tie machines | ||||||
| Model | SWT25080H | SWT25120H | SWT36150H | |||
| Operation speed | 0.7S/cable tie | 0.8S/cable tie | 1S/cable tie | |||
| Max banding Dia. for wire | Ø14mm | ø22mm | ø31mm | |||
| Max banding Dia. for tube | Ø13mm | ø21mm | ø30mm | |||
| Min banding Dia. | Ø2mm | Ø2mm | ø3mm | |||
| Voltage |
The host: AC220V,50/60Hz; the gun: DC24V(auto switch) |
|||||
SWIFT service
SWIFT is a manufacturer of auto cable tie tool and nylon cable ties. We can provide you the best machine and service.
12monthes warranty for free maintenance and parts replacement.
In general, there will be no problem within warranty. Out of warranty, you need to pay some cost for the parts.
OEM/ODM is available. Pls tell me more details and we need to evaluate the project.
Our services cover all industries and reach all parts of the world.
