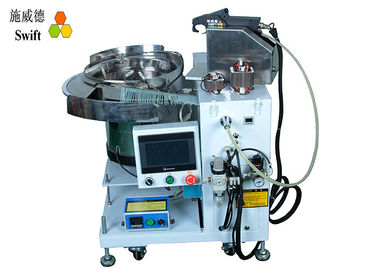

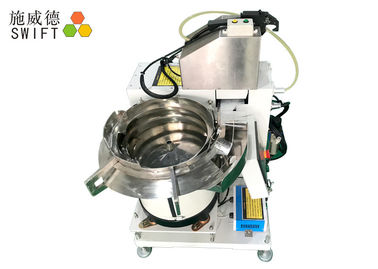

Cable Tie Tool For Bundle Motor Coil, Install And Cut Nylon Cable Ties Off
One key control – once tread the pedal, cable tie tool starts to bind items tightly with cable tie. Operator doesn’t have to thread cable tie in advance. The tool would do this operation.
Cable tie tool advantages
1. Automatically feeding loose cable ties into cable tie gun.
2. The cable tie gun would wrap, pull and cut cable ties off until items are bound tightly
3. The binding forces are adjusted by turning a knob wheel and it is easy to operate.
4. Adjust the heating temperature.
5. Set the bundle cable ties quantity.
6. The bundle speed is up to 1.0S per cable tie.
7. Alarm function.
8. The cable tie gun would be fixed in the bench so operator holds items by two hands.
Machine parameters
| Model | SWT25100M |
| Description | Automatic cable tie tool, motor coil fixing |
| Application | Automatically binding objects with cable ties - tightly and quickly. |
| Cable tie spec | W2.5 * L100mm |
| Cable tie brand | SWIFT |
| Cable tie model | T25100 |
| Cable tie features | Straight without deformation, no tilt angle, tensile strength 8kg |
| Cable tie pack | 1,000pcs per bag |
| Min bundle diameter | Ø9.0mm |
| Max bundle diameter | Ø13.0mm |
| The bundle speed | 1.0S |
| Host machine size | L690 * W670 * H670mm |
| Cable tie gun size | L331 * W282 * H189mm |
| Electric power | AC220V, 50/60Hz, Euro plug |
| Pneumatic pressure | 5kg/cm² |
Applications
Motor coil fixing, other items which has small room for cable ties to go through.
Trade terms
1. Payment: 70% TT deposit before production and 30% TT balance before ship.
2. Delivery time: 10 – 15 business days after confirm deposit.
3. Price: EXW or FOB
4. Sea port: Shenzhen, Shanghai or other places.
5. Package: In wooden cases.
FAQ
1. Do I have to use SWIFT nylon cable ties in this machine?
Yes, you do. If you insist using your cable ties, this machine must be customized according to your cable ties.
2. What is MOQ?
MOQ: 1pcs automatic cable tie tool.
3. Could you offer some machine videos?
Yes, please contact our salesmen now. There are many videos for your reference.
