Desktop Type Automatic Tie Wrap Machine , Wire Tying Machine Labor Saving

Desktop Type Cable Tie Tool For Automatic Bundling And Cutting SWT25100D

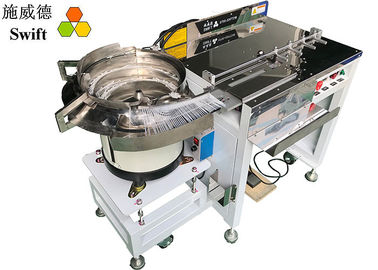

Cable tie tool SWT25100D looks like a desk. It could let loose cable ties rank tidily and send them to the position of jaws, then automatically thread, pull and tighten, cut off the waste material.



Features



1. With a large operation area. It is convenient to operate.



2. With a ruler. You could adjust the movable knob to mark the length.



3. With a vibration bowl. It could sort and line up cable ties.



4. Tread the pedal, it start to bundle.



5. The binding forces could be adjusted by engineer.



6. The force is controlled by mechanical device and would keep stable after adjust.



7. One machine can do 3workers’workload. It would help you save labor cost.



8. With wheels.



Base data



Name	SWT25100D
Description	Desktop cable tie tool for automatic bundling
Features and advantages	1. Use loose cable ties T25100. 2. Tread foot pedal, automatically bundling without hands. 3. Automatically adapt objects with diameters less than 16mm. 4. The tension force is adjustable. 5. With a ruler to mark the length.
Bench mount kit	Unnecessary
Overhead suspender	Unnecessary
Cable ties	T25100 cable ties bulk
Material	Nylon 66
Width	W2.5mm
Length	L100mm
Thickness	T1.1mm
Tie head	L4.8 * W4.8 * H3.8mm
Tensile strength	8kg
Quantity/bag	1,000pcs
Usage/per time in vibration bowl	250pcs enough
Bundling Max Dia. for wire	Ø16.0mm
Bundling Max Dia. for tube	Ø14.0mm
Bundling Max Dia.	Ø2.0mm
Bundling speed	0.8S/cable tie
Operation	Electrical
Tool head power	None
Power supply	AC110V 50/60Hz; US plug
Pneumatic pressure	3kg/cm²
Max power	1,000W
Tension force	Adjustable



































































Packing details



1pcs/wooden case.



Packing size: L1180 * W800 * H900mm; G.W.: 175kg (estimated).



FAQ



1. What is the difference compared with other similar machine?



We are the professional manufacturer of automatic cable tie tool. SWT25100D looks more beautiful than others. What is more, it is more durable, 10million cycles maintenance free.



2. What is the price?



Please contact our sales team, they would offer quotation to you.



3. Can you offer sample?



No, we could offer some videos to check.



4.  Can I adjust the binding force?



Yes, pls let PE engineer to adjust the force.
