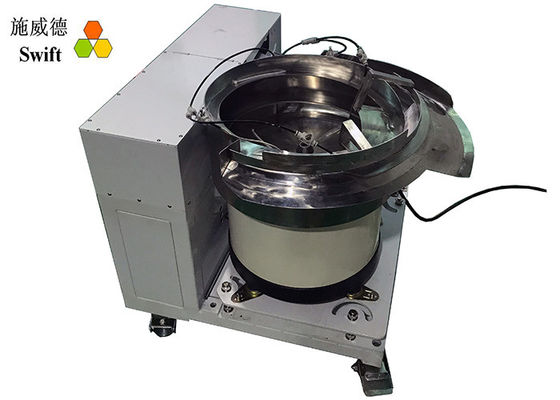

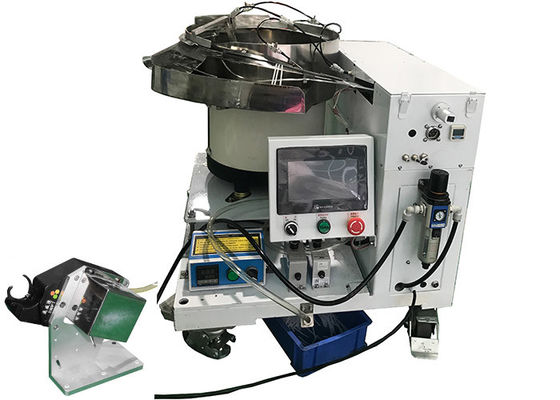

1.2S 1000W Nylon PA66 Automatic Zip Tie Machine

Name: 1.2S 1000W Nylon PA66 Automatic Zip Tie Machine
Brand: Shenzhen Swift Automation Technology Co., Ltd.
SKU: SWT36150F
Price: 8,500.00 USD
Availability: InStock

Brand Name:	Swift
Model Number:	SWT36150F
MOQ:	1pcs
Price:	Negotiation
Delivery Time:	12 - 15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS

Model:

SWT36150F

Binding Dia. For Tubes:

D3mm - D31mm

Cable Ties Model:

T36150

Cable Ties Size:

W3.6mm * L150mm *T1.2mm

Operate Speed:

1.2S Per Cable Tie

Voltage:

AC220V,50/60Hz, Different Plugs

Pneumatic Pressure:

5kg/cm2

Power:

1000W

Cable Tie Gun V:

DC48V

Certificate:

Packaging Details:

Wooden cases

Supply Ability:

100pcs/month

Highlight:

1000W Automatic Zip Tie Machine

1.2S Automatic Zip Tie Machine

Nylon PA66 Wire Tie Tool

Product Description

Hands Free Automatic Cable Tie Machine With Fixed Zip Tie Gun 1.2S Speed

Basic applications

Be suitable for bundling various of irregular objects. Operator can adjust the bundle angle at random y and it is still easy to bind the items.

And the binding forces are adjustable.

Scope of applications

Applicable cable tie: loose nylon cable ties, T36150, W3.6 * L150mm * T1.2mm.

Applicable products: To tie nylon zip ties on copper tubes, wire harness, soft tubes, bags etc. ; the bundle diameters: ø3mm - ø31mm

Applied industry: wire harness, white goods/home appliance, food, copper tubes in air conditioning.

SWT36150F advantages

1. Use loose cable ties. Model T36150.

2. Automatically wrap, tighten and cut off cable ties once touch the trigger.

3. The waste material would be collected into a box.

4. The binding speed 1.2S per cable tie.

5. Be able to improve the bundle efficinecy and save cost.

6. With big touch screen, Chinese and English display. It is easy to manage and set parameters.

7. Auto detecting: auto detect jammed and cleaned cable ties, then restart.

SWT36150F base data

Item	Data
Automatic cable tie machine model	SWT36150F
Bundle speed	1.2S per cable tie(Related to product size)
Applicable cable ties model	T36150
Applicable length/width/thickness of cable ties:	150mm/3.6mm/1.2mm
Applicable wire harness/tubes diameters	ø3mm - ø31mm for wire harness; ø3mm - ø30mm for tubes
Voltage	AC220, 50/60Hz
Power	1,000W
Pneumatic pressure	5kg/cm²
Host size	L890 * W900 * H790mm
Fixed cable tie gun size	L291W240T149mm
Fixed cable tie gun weight	4.0kg/pcs

Nylon bulk zip ties requirment

1. Main size: W3.6 * L150 * T1.2mm;

2. Head size: L6.5 * W6.5 * H4.7mm;

3. Material: nylon PA66 (good quality)

4. Tensile strength: 14kg (stronger)

5. Shape: straight and no burr/flash

Packing details

Machine: packed in two wooden cases.

Cable ties: 20,000pcs/carton boxes

1.2S 1000W Nylon PA66 Automatic Zip Tie Machine 0

Related products

SWIFT auto cable tie tool- handheld cable tie gun
Model	SWT25080H	SWT25100H	SWT25120H	SWT36100H	SWT36120H	SWT36140H	SWT36150H
Cable ties(L* W)/mm	80 * 2.5	100 * 2.5	120 * 2.5	100 * 3.6	120 * 3.6	140 * 3.6	150 * 3.6
Bundle speed	0.7S	0.8S	1.0S	0.9S	1.0S	1.2S	1.2S
Handheld gun weight	0.84kg	0.85kg	0.86kg	0.86kg	0.88kg	0.9kg	0.9kg
Binding Max Dia. for wire	14mm	18mm	22mm	18mm	23mm	27mm	31mm
Binding Min Dia.	2mm			3mm
