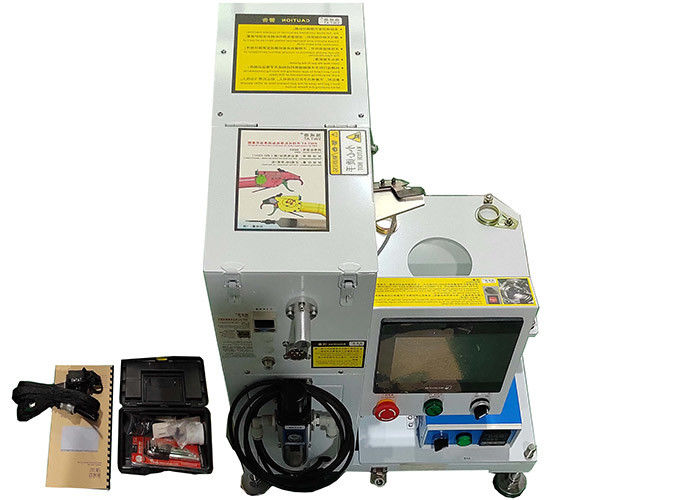

Electric DC24V Nylon Cable Tie Machine For Reliable Convinent Bundle Cable Harness
SWT25100H is with a handheld cable tie gun, using cable tie W2.5 * H100mm.
The bundle diameters are from 2mm to 18mm.
Description
1 . Use bulk cable ties T25100, vibration feeding, transferred to the Tool via hose.
2 . Pulling the trigger, automatically Wrapping, Perforating, Pulling & Tightening, Cut off tie wraps.
4. Collecting the waste material into waste tank.
3. Automatically detecting cable tie jam and cleaning automatically, and restarting.
5. Temperature controlling system: Improve the cable tie toughness when using the machine and cable tie under 15℃.
Specifications of SWT2100H cable tie machine
| Model | SWT25080H | SWT25100H | SWT25120H |
Cable tie spec |
2.5*80mm | 2.5*100mm | 2.5*120mm |
| Min banding Dia. | ø2.0mm | ø2.0mm | ø2.0mm |
| Max banding dia. for wire | ø14mm | ø17mm | ø22mm |
| Max banding dia. for tube | ø13mm | ø16mm | ø21mm |
| operation speed | 0.7S | 0.7S | 0.8S |
| Host size & weight | L690* W670* H670mm, Weight: 140kg | L725* W710* H670mm, Weight: 150kg | |
| gun size(L*H*T mm) | 245*95*64 | 250*102*64 | 256*108*66 |
| gun weight | 0.84kg | 0.85kg | 0.86kg |
| Electrical power | Host : AC 220V 50/60 Hz Gun : DC24V Power:1000W |
||
| Pneumatic pressure | 5 Kg/cm² | ||
FAQ
1. Do you provide design services?
We offer the design services related to nylon cable ties & tools.
2. Can I modify the model number of the device after I confirm the order?
If the order has not yet been produced, it can be modified.
3. How to adjust the binding tensions?
In the upper of cable tie gun, there is a knob to adjust them. Bigger number, bigger tensions.
Our products are sold all over the world, you can rest assured.
