1.3s Swt36200fc Automatic Tie Wrap Machine Tie Wrap Cutting Tool
1. Bundle max diameter 42mm.
2. SWT36200FC is samll, using cable ties in reel.

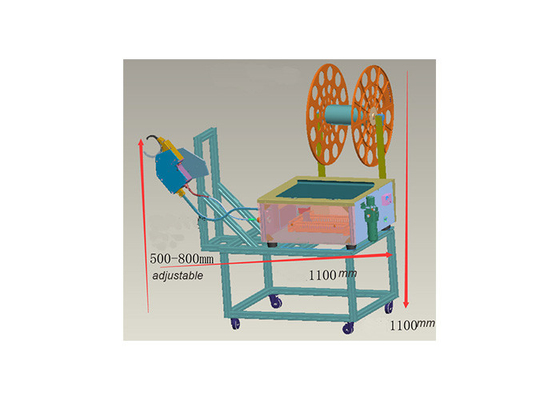

3. Be matched with a big support or not. And the height of the support is adjustable.
Technical parameters of SWT36200FC eletric tie wrap cutting tool
| No. | Item | Description | Value |
| 1 | Model | SWT36200FC | --- |
| Fixed type available | --- | ||
| 2 | Size Of cable size | Width | 3.6mm |
| Length | 200mm | ||
| Tensile strength | 15kg | ||
| 3 | Operation speed | For one cable tie | 1.3S |
| 4 |
|
For wire | Ø 42mm |
| For tube | Ø 40mm | ||
| 5 | Min banding Dia. | For tube / wire | Ø 15mm |
| 6 | Cable ties in reel |
qty |
4000pcs in a reel |
| 7 | The feeding hose | Length | 0.5m |
| 8 | The bending force | 2kg - 8kg tensions adjustable | |
| 9 | Voltage | AC220V, 50 / 60Hz, Euro plug | |
| `10 | The gun V. | DC48V ( auto switch ) | |
| 11 | Power | 1000W | |
| 12 | Pneumatic pressure | 5kg / cm² | |
| 13 | Warranty |
12monthes and tech support forever |
|
SWT36200FC tie wrap cutting tool details
1. Tread the pedal, automatically warp, perforate, pull and cut off cable tie one by one.
2. If any cable tie jammed in the gun head or in the feeding hose, the machine would stop running and clean the jammed cable tie by itself. It would automatically restart.
3. The banding tensions are adjustable, 2kg - 8kg.
4. Using cable ties in a reel, 3.6 * 200mm.
5. Toch screen and PLC control system: easy to manage the specifications
6. Tie wrap cuttine tool SWT36200FC can tie the max bundled diameter 42mm.
7. SWT36200FC can be matched with a big support if you need. So the total height is bigger.
8. Tie wrap machine SWT36200FC needs electry and pneumatic pressure.
Applications
1. bags, big insulation pad, big copper tubings, wire harness, cable harness.
Our service
1. We could help you to choose which automatic cable tie machines is best for you based on our 10years experience.
2. Reply you any doubts or need in 1 hour.
Other products
| Electrical power | The host machine | AC220V 50 / 60Hz | Pneumatic pressure | 5kg / cm |
| The gun head | DC48V | |||
| The power | 1000W | |||
| Model | SWT25100FC | SWT36150FC | SWT36150F | |
| Cable tie specifications | Width 2.5mm | Width 3.6mm | Width 3.6mm | |
| Length 100mm | Length 150mm | Length 150mm | ||
| Min binding Diameter | 2.0mm | 2.0mm | 2mm | |
| Max binding Diameter | For wire Ø 18mm | Ø 31mm | Ø 31mm | |
| For tube Ø 16mm | Ø 30mm | Ø30mm | ||
| Operating speed | 1.1s | 1.2s | 1.2S | |
| The host machine size | L710 * W470 * H230, weight 30kg | |||
| Certificates | CE and RoHS | |||
