1.2S Electric SWT36150FC Automatic Tie Wrap Machine For Twisted Bags

1.2S Electric SWT36150FC Automatic Tie Wrap Machine For Twisted Bags
1.2S Electric SWT36150FC Automatic Tie Wrap Machine For Twisted Bags

Large Image :  1.2S Electric SWT36150FC Automatic Tie Wrap Machine For Twisted Bags

Product Details:
Place of Origin: China
Brand Name: Swift
Certification: CE and RoHS
Model Number: SWT36150F
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 2pcs/wooden cases
Delivery Time: 10 - 15 working days
Payment Terms: T/T
Supply Ability: 100pcs/month
Detailed Product Description
Name: Tie Wrap Cutting Tool Bundle Capacity: 1800-2400pcs/h
Bundle Speed: 1.2S Power Supply: AC220V, 50/60Hz
Tension Forces: Adjustable 20N - 80N Cable Tie Gun: Fixed Tie Gun On The Table
Applicable Cable Ties: 3.6 * 150mm Cable Ties, Model T36150 Bundling Dia. For Wire Harness: 3-31mm
High Light:

1.2S Automatic Tie Wrap Machine

,

SWT36150FC

,

31mm Plastic Tie Machine

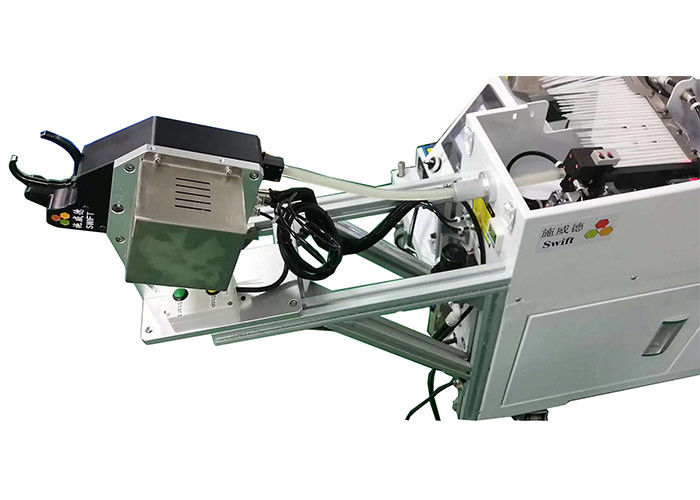

1.2S Electric SWT36150FC Automatic Tie Wrap Machine For Twisted Bags



1. Automatic tie wrap machine SWT26150F is triggered by foot pedal and cable tie gun can be fixed in the worktop.



2. Two hands of operator are free so that it is convenient to pick goods up, excepecially for big wire harness, rubber tubes.



Description of automatic tie wrap machine SWT36150F



1. Fixed cable tie gun is without battery and must work with the host machine of SWT36150F.



2. PLC and touch screen control system in the host machine.



3. The vibration bowl feeder can sort loose cable ties, 3.6 * 150mm.



4. Automatic cable tie machine SWT36150F could wrap, tighten and cut off nylon cable ties in 1.2S after operator treads the foot pedal.



5. There should keep 250pcs cable ties in the bowl feeder when to use cable tie wrap machine.



6. The binding tensions are adjustable from 2kg to 8kg.





Information of automatic cable tying machine SWT36150F



Model SWT36150F
Cable tie gun Fixed cable tie gun
Batteries included No
Batteries required No
Applicable cable tie width 3.6mm
Applicable cable tie length 150mm
Applicable cable tie head L6.1 * W5.9 * H4.6mm
Bundle diameter 3 - 31mm
Bundle forces 20 - 80N, adjustable
Bundle speed 1.2S/cable tie
Bundle productivity 1800pcs/h- 2400pcs
Host machine L89*W90*H79cm
Cable tie gun L278*W240*H149mm
Voltage AC220V, 50/60Hz, different plugs
Pneumatic pressure 0.5MPa



Advantages of nylon cable tie machines SWT36150F



1. A cable tie gun SWT36150F can help wire harness manufactures to save 2 workers' salary.



2. To realize semi-automation or full-automation. SWT36150F can be applied into full automation line.



3. Work stable and fast.



Applications

1. Sets of kitchen utensils: spoons, spatulas, shells and forks

2. White goods: tubing components of refrigerators, wire harness, cotton covers



3. Coils of polyester monofilaments,stator motor or bags



Trade terms



Sea port Shenzhen, Guangzhou, huizhou
Payment 100% TT before ship
Lead time 15working days
Packing Wooden cases
Warranty 1 year and tech support forever



Packing details



Automatic cable tie machine will be packed in wooden cases.



Item N.W./kg G.W./kg Packing size
Host machine, cable tie gun and others 80kg 111kg 88cm*84cm*97cm
Vibration feeder 69kg 92kg 80cm*68cm*70cm



FAQ



1. Why cable tie is not tight?



The bundle tention may be smaller. Please turn the knob to set bigger forces.



2. Why operator should put nylon cable ties into the bowl feeder often?



Because automatic cable tie machine SWT36150F deals with loose zip ties, 3.6 * 150mm. And it doesn’t produce zip ties.  Pls keep 250pcs nylon  tie wraps in the bowl feeder.



3. What are the requirements of nylon cable ties?



Nylon cable ties are stronger, straight and without burr/flash/deformation.
