8kg Tension Nylon Cable Tie Machine touch screen PLC Control System
SWT25100H cable tie tool is ideal for heavy duty use. The bundle speed can be up to 0.7S.
Operator can use it to finish banding 2400pcs cable ties in a hour or more.

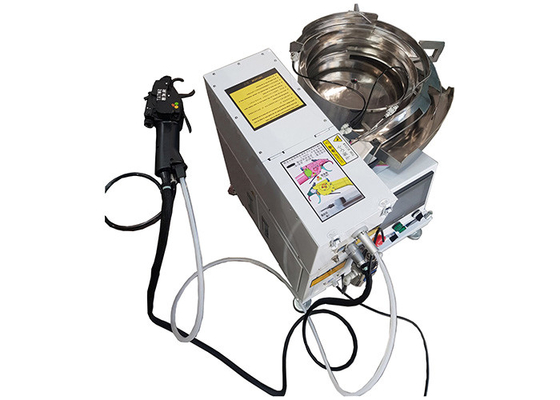

Machine components
1. A handheld cable tie gun: pull the trigger, automatic wrapping, tightening, cutting cable tie.
2. A vibration bowl: sort cable ties tidily.
3. PLC control system and touch screen: manage parameters setting, dual languages display.
4. Controlling temperature system: protech cable ties toughness.
Advantages for zip tie machine SWT25100H
1. Achieve fast binding. It takes 0.7S to bundle one cable tie. It works stable and fast.
2. The binding tensioins are adjustable. 8kg is the max.
3. There are more than 50 patents.
SWT25100H base data
| No. 1 | Description | Automatic cable tie cutting tool | |||
| 2 | Brand | SWIFT | |||
| 3 | Model | SWT25100H | |||
| Features/advantages |
1. Be suitable for deal with numbers of bulk cable ties bundling. 2. Automatic binding cable ties until wires bundle is tightened. 3. Collecting the excess tail into a box or a tin(optional), keep clean. 4. Bundle speed 0.7S |
||||
| 4 | Cable ties details | Ties type | Bulk cable ties | ||
| Tie model | T25100 | ||||
| Tie width | 2.5mm | ||||
| Tie length | 100mm | ||||
| Tie thickness | 1.1mm | ||||
| Tensile strength | 8kg | ||||
| Quantity/bags | 1,000pcs | ||||
| 5 | Usage/per time in vibration bowl | 250pcs - 300pcss | |||
| 6 | Max bundling Dia. for wire | 17mm | |||
| 7 | Max bundling Dia. for tube | 16mm | |||
| 8 | Min bundling Dia. | 2mm | |||
| 9 | Bundling speed | 0.7S | |||
| 10 | Power supply | AC220V, 50/60Hz | |||
| 11 | Pneumatic pressure | 5kg/cm² | |||
| 12 | Max Power | 1,000W | |||
| 13 | Certificates | CE, RoHS | |||
| 14 | Packing details | Host machine/wooden case | Packing size | L760 * W730 * H860mm | |
| N.W./kg | 80 | ||||
| G.W./kg | 100kg | ||||
| Vibration bowl/wooden case | Packing size | L710 * W590 * H940mm | |||
| N.W./kg | 55kg | ||||
| G.W./kg | 65kg | ||||
| Total wooden cases | 2pcs | ||||
| Total N.W./kg | 135kg | ||||
| Total G.W./kg | 165kg | ||||
Trading details
1. Delivery date: normally 10days.
2. Payment terms: 70% TT payment before production and 30% balance payment before ship.
3. Transportation: by sea, by air, by express.
FAQ
1. How long is it from the feeding tube to handheld tie gun?
1.5m to 2m.
2. Do you have zip tie machind can bundle 2.5*100mm and 3.6 * 120mm nylon cable ties?
No, we don't have because these cable ties sizes are very different.
3. Does automatic cable tie machin SWT25100H work in full automation line?
Yes, it can work in full automation line and we can offer some tech data to you if you need.
