| Brand Name: | Swift |
| Model Number: | SWT36100F |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 10 - 15 working days |
| Payment Terms: | T/T |

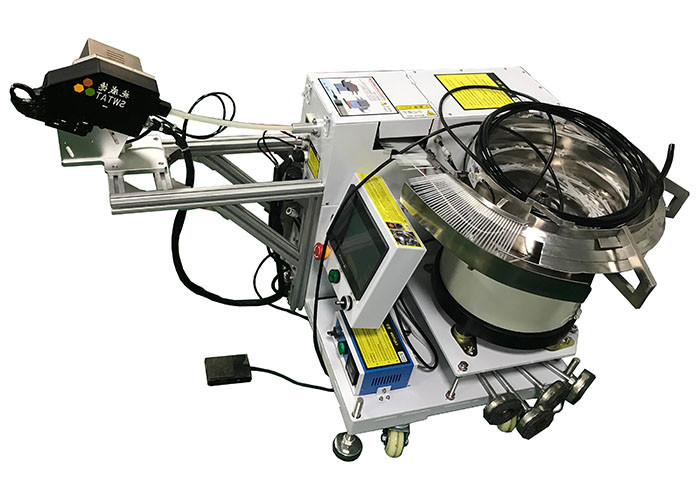

Adjustable 20N 3600pcs/H Automatic Zip Tie Machine For Bundle Cable
1. The cable tie gun can be fixed in the assembly line or other places. It is triggered by foot pedal.
2. Two hands of operator are free so that it is convenient to pick goods up.
3. Automatically bundle quickly, save 3 workers even more.
Description of automatic zip tie packing gun
1. Fixed cable tie gun: it is without battery and must be connected to host machine of SWT36100F.
2. The binding forces: 20N-80N adjustable.
3. Vibration bowl in the host machine: the bowl feeder can sort loose cable ties.
4. Automatic cable tie machine could wrap, tighten and cut off nylon cable ties after operator treads the foot pedal within 1S.
5. Nylon cable ties need to be put in the bowl feeder in advance.
Information of automatic cable tying machine
| Model | SWT36100F |
| Cable tie gun | Fixed cable tie gun |
| Batteries included | No |
| Batteries required | No |
| Applicable cable tie width | 3.6mm |
| Applicable cable tie length | 100mm |
| Applicable cable tie head | L6.1 * W5.9 * H4.6mm |
| Bundle diameter | 3 - 18mm |
| Bundle forces | 20 - 80N, adjustable |
| Bundle speed | 0.9S/cable tie |
| Bundle productivity | 1800-3600pcs/h, including the time of picking and placing products |
| Host machine | L89*W90*H79cm |
| Cable tie gun | L278*W240*H149mm |
| Voltage | AC220V, 50/60Hz, different plugs |
| Pneumatic pressure | 0.5MPa |
Advantages of nylon cable tie machines
1. To save labor cost: an automatic cable tie machine can save 2 workers even more.
2. To keep smooth cut incision fast.
Applications
1. White goods: tubing components of refrigerators, washing machines
2. Sets of kitchen utensils: spoons, spatulas, shells and forks
3. Coils of polyester monofilaments, outer coils of stator motor
Trade terms
| Sea port | Shenzhen, Shanghai, Guangzhou |
| Payment | 100% TT before ship |
| Lead time | 15working days |
| Packing | Wooden cases |
| Warranty | 1 year and tech support forever |
Packing details of cable tie machine
Pls check below.
| Item | N.W./kg | G.W./kg | Packing size |
| Host machine, cable tie gun and others | 78kg | 109kg | 87cm*83cm*97cm |
| Vibration feeder | 67kg | 90kg | 79cm*67cm*70cm |
FAQ
1. Why cable tie is not tight?
Reasons:
1.The binding force may be smaller. Please turn the knob to set bigger forces.
2. Cable tie debris is jammed in the tie gun so that next cable tie can’t be tied tightly. Operator needs to clean the debris.
2. What are the requirements of nylon cable ties?
Nylon cable ties are stronger, straight and without burr/flash/deformation. Heavy deformed cable ties can’t be applied to automatic cable tie machines.
3. Do you have other languages in systems?
Yes, English/Chinese/Italian etc.
Video
Video
Video
Video
Video
Video
|
