| Brand Name: | SWIFT |
| Model Number: | SWT25100HC |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 10 -15days |
| Payment Terms: | T/T |
5000pcs Zip Ties Automatic Cable Tie Tool Adjustable 70N Bundle Forces

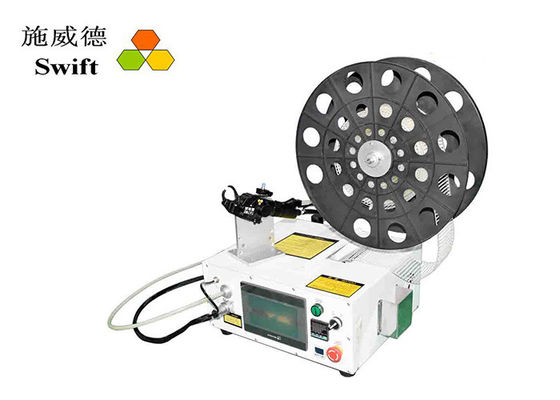

AC220 Electric Automatic Handheld Cable Tie Gun With 5,000pcs Zip Ties In Roll
There are 5000pcs cable ties in a roll. After loading these plastic cable ties in the first time, you don't have to load them again and again like loose cable ties.
Automatic cable tie gun can save 2 or 3 workers.
Features of automatic zip tie gun
1 . Automatically detecting cable tie jam. If cable tie is jammed in the tool or the hose, it would stop the machine, clean the jammed cable tie and restart it.
2 . The waste will be collected into a box after tightening and cutting nylon zip ties.
3 . The collecting waste system. After cutting off cable tie, the tail waste will be collected into a box.
4 . The temperature controlling system protects the cable ties from get fragile in cold winter.
5. Once pulliing the trigger of tie gun, nylon plastic cable ties will be wrapped, tightened ang cut.
6. The whold operation speed is 1.0S per cable tie.
Product parameters of handheld cable tie gun
| Item | Description | Value | |
| 1 | Model | SWT25100HC | No |
| Handheld type available | No | ||
| 2 |
Size Of cable size ( reel cable ties) |
Width | 2.5mm |
| Length | 100mm | ||
| Thicker | 1.15mm | ||
| 3 | Operation speed | For one cable tie | 1.0S |
| 4 |
Max banding Dia.
|
For wire | Ø 18.0mm |
| For tube | Ø 16.0mm | ||
| 5 | Min banding Dia. | For tube / wire | Ø 3.0mm |
| 6 | The feeding hose | Length | 1.5-2.2m |
| 7 | The bending force | Adjustable, ,max 80N | |
| 8 | Voltage | AC220V, 50 / 60Hz | |
| Different plugs | |||
| 9 | The gun V. | DC24V (switch automatically) | |
| 10 | Power | 1KW | |
| 11 | Pneumatic pressure | 5kg / cm² | |
| 12 | Warranty | 12monthes | |
| Tech support forever | |||
Product details automatic cable tie system
1 . There is no vibration feeding for SWT25100HC automatic cable tie machine. It uses strip cable ties.
2 . The noise is lower when automatic cable tie machine.
3 . The automatic zip tie gun of SWT25100HC uses reel cable ties.
4 . If you add a metal support, the handheld zip tie gun can be used as the fixed type.
Applications
1 . Food industry.
Bundle different kinds of bottles, bags.
2. White products
All kinds of wiring harness inside the air condition, fan and so on.
FAQ
|
FAQ
|
|
| Questions |
Answer
|
|
1 . How can I get a quotation? |
Pls click “contact now” and send messages to us, you will receive the reply soon.
You can also contact us by email.
|
| 2 . Do you provide design services? |
Yes, we do.
|
|
3 . What is your Pre-sales service ? |
100% TT payment before ship.
|
