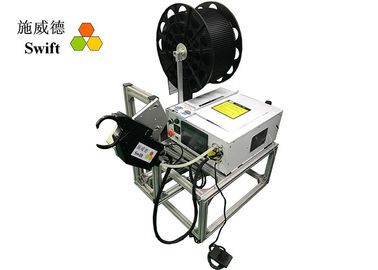

Automatic Cable Tie Machine, Cable Tie Gun For Bundling 1.3S
Automatic cable tie machine is for bundling nylon cable ties in short time. And it could provide consistent tightening force. And the force can be adjusted based on your setting.
Technical data
|
Model: SWT36200FC |
Nylon cable ties type | Reel cable ties |
| Cable tie size | W3.6 * L200mm | |
| Bundle diameters range | 15mm – 42mm | |
| Bundle speed | 1.3S | |
| Tension forces(Adjustable) | 0(2kg), 1(4kg), 2(6kg), 3(8kg) | |
| Host machine | 30kg | |
| Cable tie gun weight | 4kg | |
| Cable tie gun voltage | DC48V(Auto switch) | |
| Host machine voltage | AC220V, 50/60Hz | |
| Pneumatic pressure | 5kg/cm² | |
| Power | 1,000W | |
| Function | Automatically bundle nylon cable ties |
Features
1. Once tread the foot pedal, cable ties would be bundled.
2. Using reel cable ties, C36200, there are 5,000pcs on a chain.
3. The machine is small without vibration bowl.
4. PLC control system and touch screen.
5. The binding force is adjustable by turning a knob.
7. Voltage: AC220V, 50/60Hz; pneumatic pressure: 5kg/cm²
Applications
Use in the production of high-volume.The automatic bundle tool SWT36200FC can bind up to a diameter of 42mm. It can be used in wire harness industry, medical industry, electronics industry so on. It can speed up bundling processes and make the production more efficient.
There are 4,000pcs cable ties on chain. Operator can run out them then place the reel cable ties again. It doesn't need to put cable ties often.
Optional choices
1. With a big Aluminum frame. Cable tie gun can be fixed here.
2. Without Aluminum frame. Cable tie gun can be fixed in places that you want.
Related nylon cable ties
|
Model: C36200 |
Nylon cable ties type | Reel cable ties |
| Cable tie size | W3.6 * L200mm | |
| Cable tie head | 6.7 * 6.6 *4.6mm | |
| Tensile strength | 15kg | |
| Color | White/black | |
| Material | Nylon PA66 | |
| Suitable temperature | -30℃ - +80℃ | |
| Certificate | CE, RoHS, REACH |
