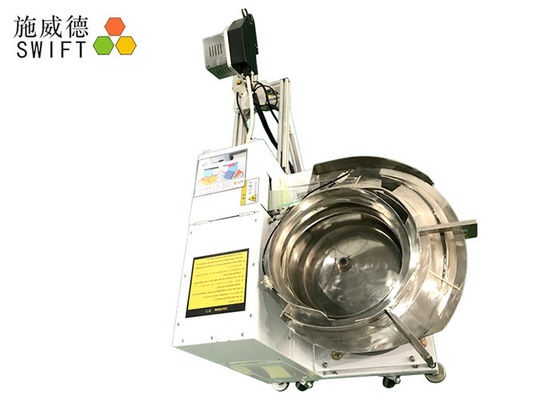

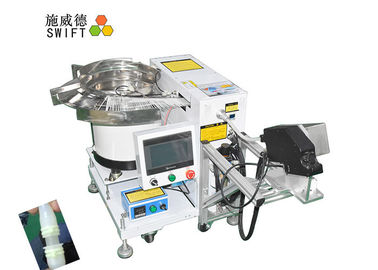

Automatic Bundling Zip Tie System 30 mm Diameter Tubes For Tying , Fixed Cable Tie Gun

Name: Automatic Bundling Zip Tie System 30 mm Diameter Tubes For Tying , Fixed Cable Tie Gun
Brand: Shenzhen Swift Automation Technology Co., Ltd.
SKU: SWT36150F
Price: 8,500.00 USD
Availability: InStock

Brand Name:	Swift
Model Number:	SWT36150F
MOQ:	1pcs
Price:	Negotiation
Delivery Time:	12 - 15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS

Model:

SWT36150F

Binding Dia. For Tubes:

3mm - 30mm

Cable Ties Model:

T36150

Cable Ties Size:

W3.6 * L150mm

Operate Speed:

1.0S

Voltage:

AC220V,50/60Hz, Different Plugs

Application:

Automatic Bundling Silicone Tubes Easily And Fast

Cable Tie Gun Type:

Electric And Fixed Cable Tie Gun

Packaging Details:

Wooden cases

Supply Ability:

100pcs/month

Highlight:

automatic bundling machine

wire bundling machine

Product Description

Automatic Bundling 30mm Diameter Tubes Zip Tie Tool For Tying, Fixed Cable Tie Gun CE

Autotool SWT36150F, fixed cable tie gun in the bench. The binding diameters for TUBES(or similar items): 2mm - 30mm.

SWT36150F advantages

1. Use loose cable ties. Cable ties size W3.6 * L150mm. Model T36150.

2. There is a fixed cable tie gun that would fixed in the work bench.

3. Automatically wrap, tighten and cut off cable ties once touch the trigger.

4. The binding speed 1.0S

5. The binding forces are adjustable.

6. With big touch screen, Chinese and English display. It is easy to manage and set parameters.

7. Auto detecting: auto detect jammed and cleaned cable ties, then restart.

SWT36150F base data

Product name	Automatic cable tie tool
Model	SWT36150F
Certificate	CE
Tool head	Fixed cable tie gun
Operation speed	1.0S
Cable ties used in the machine	T36150, width 3.6mm * length 150mm
Cable tie thickness	1.2mm
Cable tie tensile strength	12kg
Bundle dia. for tubes	Total 3mm - 30mm
Pneumatic pressure	5kg/cm²
Power supply	AC220 - 240V, 50/60Hz

Automatic Bundling Zip Tie System 30 mm Diameter Tubes For Tying , Fixed Cable Tie Gun 0

Applications

Big plastic tubes for water despenser/medical using/soap dispensers

Packing details

Packed in two wooden cases.

Related products

SWIFT auto cable tie tool- handheld cable tie gun
Model	SWT25080H	SWT25100H	SWT25120H	SWT36100H	SWT36120H	SWT36140H	SWT36150H
Cable ties(L* W)/mm	80 * 2.5	100 * 2.5	120 * 2.5	100 * 3.6	120 * 3.6	140 * 3.6	150 * 3.6
Binding Max Dia. for wire	14mm	18mm	22mm	18mm	23mm	27mm	31mm
Binding Min Dia.	2mm			3mm
