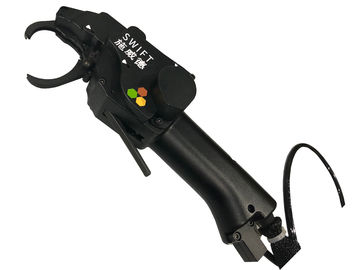

Cable Tie Tool, Installation Tool For Fast Tying Auto Bundling Nylon Cable Ties
You will find swift automatic cable tie tool is different with other tools. It bundles one cable tie in 0.7S. It automatically wrap, tension and cut off by touch the trigger.
Swift cable tie tool advantage

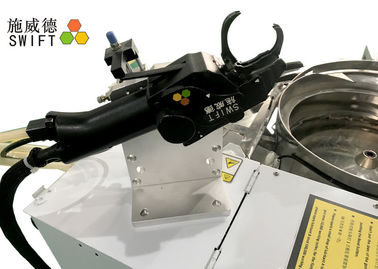

1. Dealing with loose cable ties, vibration feeding, transferred to the handheld cable tie gun.
2. Fast bundle. Cable tie tool bundles one cable tie in 0.7S.
3. Automatically adapt different diameters your products.
4. Bundle diameter: 2mm - 18mm.
5. Touch screen, easy to operate and manage.
SWT25100H Cable tie tool data
| Description | Automatic cable tie tool | ||
| Brand | SWIFT | ||
| Model | SWT25100H | ||
| What cable ties can be used in this machine? | Ties type | Loose cable ties | |
| Tie model | T25100 | ||
| Tie width | 2.5mm | ||
| Tie length | 100mm | ||
| Tie thickness | 1.1mm | ||
| Tensile strength | 8Kgf | ||
| Quantity per bag | 1000pcs | ||
| Max bundling Dia. for wire | 18mm | ||
| Min bundling Dia. | 2mm | ||
| Bundling speed | 0.7S | ||
| Cable tie gun details | Power | DC24V auto transferred | |
| Size | L250 * W102* T64mm | ||
| Tension forces | Adjustable | ||
| Power supply | AC220V, 50/60Hz | ||
| Pneumatic pressure | 5kg/cm² | ||
| Max Power | 1,000W | ||
| Certificates | CE, RoHS | ||
Swift cable tie tool instroduction
The electrically operated Cable Tie Tool SWT25100H bundling tool is a leader in terms of process reliability and automation.
It works fully automatically and accelerates cable tying processes considerably.
Bundling, threading, tensioning and cutting are done at the touch of a button – with constant quality.
This automatic bundling tool makes faster and more effective processing possible.
FAQ
1. MOQ: 1pcs.
2. Payment: 100% TT payment before ship.
3. Delivery date: 10-12days.
4. You could visit our factory at any time if you have the require. And pls inform our sales man.
5. Service: online/ phone train, 1 year warranty and tech support foerever.
Our services cover all industries and reach all parts of the world.
