Cable Tie Tool, Zip Tie Installlation Tool For Cable Ties Tensioning
Swift cable tie tool will save your time and money by allowing you to efficiently tie, tighten, tension, and trim your cable ties. When to pull the trigger, it does all actions mentioned. It is faster than by hand tying cable ties.

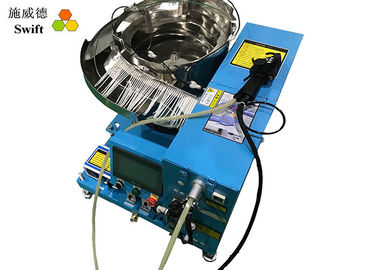

SWT25100H components
| SWT25100H components | Description |

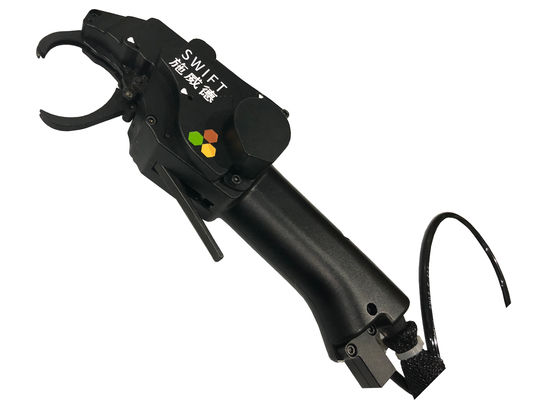

| 1. A handheld gun | Auto bundling items without hands threading and cutting. |
| 2. A vibration bowl | Sort materials nylon cable ties |
| 3. PLC and touch screen | Logic control, parameter settings |
| 4. Wire, switch, connectors | Signal transferred |
| 5. Distribution system | Convey cable ties one by one |
Advantages
1. Tool Heads have ergonomic, lightweight design to reduce operator fatigue and repetitive motion injuries – no counter balance required.
2. Right or left hand operation
3. Durable, one-piece cable tie tip collector (for cut-off tips).
4. Tying tension adjustment.
5.Built-in safety interlock prevents false triggering if anything obstructs jaw path.
6. Automatically adapt different diameters products. And the max bundle diameter is 18mm.
SWT25100H Technical data
| No. 1 | Description | Cable tie tensioning tool | ||||
| 2 | Brand | SWIFT | ||||
| 3 | Model | SWT25100H | ||||
| 4 | Features/advantages |
1. Fast bundling cable ties, only 0. 7per cable tie! 2. Provide a clean cut without sharp cable tie protrusions. 3. Temperature control system to protect cable ties toughness in cold environment. 4. Touch panel with dual languages, Chinese and English. |
||||
| 5 | Cable ties details | Ties type | Bulk cable ties | |||
| Tie model | T25100 (same size/good quality can be used in this machine) | |||||
| Tie width | 2.5mm | |||||
| Tie length | 4inch | |||||
| Tie thickness | 1.1mm | |||||
| Tensile strength | 12kg | |||||
| Quantity/bags | 1,000pcs | |||||
| 6 | Max bundling Dia. for wire | 18mm | ||||
| 7 | Max bundling Dia. for tube | 16mm | ||||
| 8 | Min bundling Dia. | 2mm | ||||
| 9 | Bundling speed | 0.7S | ||||
| 10 | Cable tie gun details | Power | DC24V auto transferred | |||
| Tension forces | Adjustable by turn knob(5settings) | |||||
| 11 | Power supply | AC220V, 50/60Hz; AC110V, 50/60Hz | ||||
| 12 | Pneumatic pressure | 5kg/cm² | ||||
| 13 | Max Power | 1,000W | ||||
| 14 | Certificates | CE, RoHS | ||||
