Waste-free Bundling Automatic Cable Tying Machine 0.8S Fast Speed 4Inch Tie-wrap

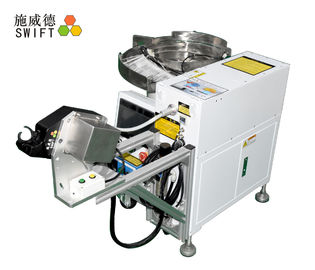

SWT25100F automatic cable tying machine is an automated and electric cable tying system. It mainly uses to bundle objects with fast speed. It takes 0.8s to thread, pull and tighten, cut and collect plastic ties.

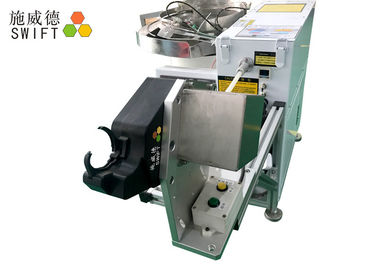

1. The machine consists of a vibration bowl, a host machine and a tool gun.
2. The vibration bowl could rank loose cable ties tidily through vibrating.
3. The host machine could control the binding speed, time etc.
4. The tool gun could bundle goods once tread the pedal.
5. Operator could use hands to hold object.
6. The tool head can be fixed in the bench.
7. Using loose cable ties T25100, 1,000pcs in bag.
8. The host machine is with 4wheels, it is easy to move.
9. Tension forces are adjustable.
10. The machine could provide bigger tightening force than others, especially bundling PVC sleeve.
|Description||Automatic cable tying machine/automatic cable tie system|
|Features and advantages||
1. Use loose cable ties T25100;
2. Electric powered;
3. Automatic wrapping, tightening and cutting;
4. Automatic adapt different sizes goods;
5. Waste-free bundling.
6. With temperature control system that is uses to protect cable ties toughness.
|Bench mount kit||A tool gun and its support(standard)|
|Tool gun size||L284 * W240 * H149mm|
|Host machine size||L690* W670 * H670mm|
|Cable ties||T25100 bulk cable ties|
|Usage/per time in vibration bowl||250pcs better|
|Bundling Max Dia. for wire||Ø18.0mm|
|Bundling Max Dia. for tube||Ø16.0mm|
|Bundling Max Dia.||Ø2.0mm|
|Cycle time / Bundling speed||0.8S|
|Tool head power||DC48V|
|Power supply||AC110V/AC220V, 50/60Hz; Euro/US plug|
|SWT25100F Packing Details|
|Export wooden case||2pcs|
|The host machine / wooden case||G.W./kg||100kg|
|Packing Size/cm||L75 * W70 * H85cm|
|The vibration bowl / wooden case||G.W./kg||69kg|
|Packing Size/cm||L68 * W55 * H93cm|
|Total G.W.||169kg( estimated)|
1. Delivery time: 3– 15days before confirm payment.
If the machine in stock, it can be sent within 3days once receive the payment.
Or the machine would be sent within 15days.
By boat, about 30days;
By air, normally 3 – 4days;
By express, DHL, FEDEX, TNT, normally 5 – 7days.
