Customize Reel Zip Tie Tool Adjustable Binding Force Improve Working Efficiency

Customize Reel Zip Tie Tool Adjustable Binding Force Improve Working Efficiency

  • High Light

    automatic wire tying tool


    wire bundling machine

  • Product Name
    Automatic Cable Tie Machine
  • Application
    Bundling Goods With Cable Ties
  • Model
  • Cable Tie Width
  • Cable Tie Length
  • Bundling Diameter
    2mm - 18mm
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    wooden case
  • Delivery Time
    10 - 15days
  • Payment Terms
    100%T/T payment before ship
  • Supply Ability

Customize Reel Zip Tie Tool Adjustable Binding Force Improve Working Efficiency

Binding Force Adjustable Cable Tie machine Automatic Bundling Reel Zip Ties


SWT25100FC cable tie machine is also named automatic cable tie system. It can speed up the bundling process and improve working efficiency.




1. Using reel cable ties C25100, 5,000pcs/reel.

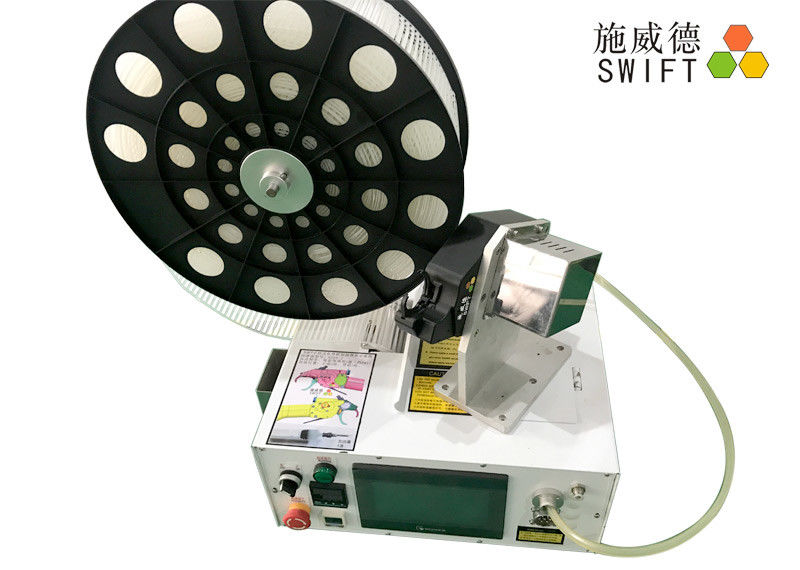

2. It consists of a host machine, a tool head (tool gun), the reel.


3. The tool head is fixed in the bench or in the customized frame.


4. It starts to bundle objects once tread the foot pedal (automatic threading, tightening and cutting).


5. Automatically detect whether cable tie is bundled successfully or not.


6. Automatically detect whether cable tie is jammed or not and clean jammed cable tie.


7. Automatically count quantity of cable ties bundled successfully.


8. Power supply: AC110V, 50/60Hz; AC220V, 50/60Hz.


9. Binding force is adjustable.


Base data


Name SWT25100FC
Description Automatic cable tie system
Features and advantages

1. Use reel cable ties C25100.

2. Small and noise lower.

3. Automatic adapt and bundle objects with diameters less than 18mm.

4. Automatic detect failure. It can detect whether cable ties have been bundled or not and deal with the failed ties.

5. The operation speed is adjustable.

Bench mount kit Including a gun head, a metal support, a foot pedal(Standard)
Overhead suspender Unnecessary
Cable ties C25100 reel cable ties
Material Nylon 66 U4820L
Width 2.5mm
Length 100mm
Tensile strength 8kg
Quantity/REEL 5,000pcs
Usage/per time in vibration bowl Without vibration bowl
Bundling Max Dia. for wire Ø18.0mm
Bundling Max Dia. for tube Ø16.0mm
Bundling Max Dia. Ø2.0mm
Bundling speed 1.1S/cable tie
Operation Electrical
Tool head power DC48V, automatic switch
Power supply AC110V/AC220V, 50/60Hz; plugs available
Pneumatic pressure 5kg/cm²
Max power 1,000W
Tension force Adjustable


Packing details


SWT25100FC Packing Details
Export wooden case 1pcs
The host machine / wooden case G.W./kg 41kg
Packing Size/cm L63 * W61 * H37cm
The vibration bowl / wooden case G.W./kg None
Packing Size/cm None
Total G.W. 41kg( estimated)




1. What are the differences between SWT25100FC and other brand machines?


Pls see the table as below:

Description SWT25100FC Other brand machines
1. Don’t have to change jaws to adapt to bundle different objects. Yes No, you need to change different jaws to adapt different goods bundled.
2. With temperature control system to protect cable ties toughness Yes No, they are without this system.
3. Automatic counting qty of cable ties Yes No, they don’t have.
4. Automatic detecting whether cable ties are jammed or not and cleaning them. Yes No, they can’t.


2. How do you control the quality?


SWIFT machine would be tested 1,000 – 2,000 times before shipment to guarantee the good condition.
