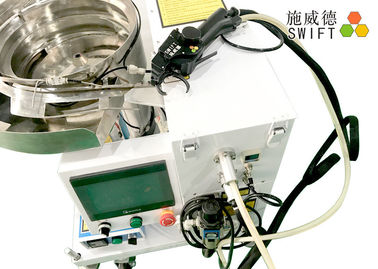

Bundling Fast Speed Autotool System SWT25080H Max Binding Diameter 10mm
The machine could automatic bundle objects without threading and tightening by hands. The max binding diameter is 10mm. It could adapt different diameters objects bundling automatically.
Features
1. Electrically powered cable tie tying machine.
2. Power supply: AC220V/AC110V, 50/60Hz; Tool head output: DC24V, Max. 1,000W.
3. High quality, waste-free bundling.
4. Fast bundling speed up to 0.7S.
5. Tool head can adapt different diameter objects and bundle automatically.
6. Overhead suspension possible.
7. Integration into fully automated production line possible.
8. The binding forces adjustable(2kg, 3.5kg, 5kg, 6.5kg, 8kg).
9. Handheld tool head. It would start to bundle once push the trigger.
10. With either the bench mount kit possible. If you want to use it in the bench, pls inform us in advance.
.
Certification and Approvals
CE and RoHS
Applications
The autotool system SWT2080H is a machine that could help human to speed up the bundling processes and operates waste-free.
It could bundle different diameters objects automatically and cut off the tails of cable ties.
It is suitable for following markets and industries.
Aerospace industry, Solar energy industry, Defence industry and others.
Base data
| Name | Autotool system SWT25080H |
| Description | Automatic cable tying machine/automatic cable tie system |
| Features and advantages | Use loose cable ties, Electrically operated, Automatic bundling, Automatic adapt different sizes goods |
| Bench mount kit | A metal support, a foot pedal(if need, please inform us in advance) |
| Overhead suspender | Overhead suspender possible(if need, please inform us in advance) |
| Cable ties | T25080 packed in bags, bulk cable ties |
| Material | Nylon / plastic |
| Width | 2.5mm |
| Length | 80mm |
| Quantity/bag | 1,000pcs/bag |
| Usage/per time in vibration bowl | 200pcs – 300pcs better |
| Bundling Max Dia. for wire | Ø10.0mm |
| Bundling Max Dia. for tube | Ø8.0mm |
| Bundling Max Dia. | Ø2.0mm |
| Bundling speed | 1S/cable tie |
| Operation | Electrical |
| Tool head power | DC24V, automatic transfer |
| Power supply | AC110V/AC220V, 50/60Hz |
| Pneumatic pressure | 5kg/cm2 |
| Max power | 1,000W |
| Tension force | Adjustable |
Packing details
| SWT25080H Packing Details | ||
| Export wooden case | 2pcs | |
| The host machine / wooden case | G.W./kg | 100kg |
| Packing Size/cm | L75 * W75 * H88cm | |
| The vibration bowl / wooden case | G.W./kg | 70kg |
| Packing Size/cm | L70 * W60 * H100cm | |
| Total G.W. | 170kg( estimated) | |
Trade terms
1. Payment ways: 100%TT available.
2. 100%payment confirm before ship.
3. Price: FOB Shenzhen, EXW-price, CIF etc.
4. Transportation: by sea, by air, by express or others.
