Time Saving Automatic Tying Machine , Automatic Bundling Machine For Nylon Cable Tie

Time Saving Automatic Tying Machine , Automatic Bundling Machine For Nylon Cable Tie

  • High Light

    automatic wire tying tool

    ,

    wire bundling machine

  • Name
    Automatic Cable Tie Tool
  • Modle
    SWT36150F
  • Bundling Max Dia.
    31mm
  • Bundling Min Dia.
    3mm
  • Cable Ties
    W3.6 * L150mm ( Bulk Package)
  • Power Supply
    AC220V, 50/60Hz
  • Place of Origin
    China
  • Brand Name
    Swift
  • Certification
    CE and RoHS
  • Model Number
    SWT36150F
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    2pcs/wooden cases
  • Delivery Time
    10 - 15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

Time Saving Automatic Tying Machine , Automatic Bundling Machine For Nylon Cable Tie

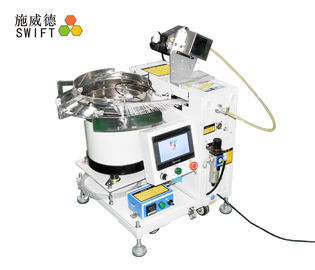

Fixed In Bench Top Automatic Cable Tie Tool Bundling Diameter Up To 22mm



Automatic binding machine of desktop type. The machine can automatically bundle objects with cable ties. It is with a stable and reliable bundling operation.



Why do you choose automatic cable tie tool?



The cable tie tool can help you save more time.



In general, work spend 6S binding one cable tie.



However, the tool takes less than 1S. It can automatically wrap, tighten and cut off one cable tie when to tread the pedal.



SWT35100F advantages



1 . Using bulk cable ties, not reel cable ties.



2. Take 0.8second or 0.9second to finish all operations, including wrapping, tightening and cutting off cable ties.



3 . Binding force can be adjustable.



4 . Automatically detect the jammed cable tie in the hose or the gun.



5 . Under 15℃, pls use the temperature control system. It is useful to improve cable tie toughness.



SWT36100F basic data



Product name Cable tie tool Model SWT36100H Using type Fixed in desk.
Zip tie type Bulk zip tie Zip tie width 3.6mm Zip tie length 100mm
Size of host machine L890 * W900 * H790mm Weight of host machine 160kg Material Metal
Size of gun head L278 * W240 * H149mm Weight of gun head 4.0kg Certificate CE
Power supply AC220V, 50 / 60Hz Power 1000W Pneumatic pressure 5kg / cm²



SWT36100F technical specifications



Bundling Max Dia. for wire / tube Ø18mm / Ø 16mm Bundling Min Dia. Ø3mm
Operation speed 0.9S Actual pneumatic pressure

3 - 5 kg / cm²

(the smaller, the better)

Temperature 40℃ suggest Qty of cable ties per time in vibration bowl 200pcs – 300pcs
The tensile force the number of the vernier is 0 – 4.



Applications



Shipbuilding



Defence industry



Telecommunication



White goods



All kinds of bags with liquid.

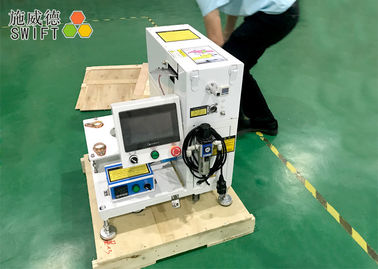

Package



The machine would be divided to two parts to ship.

The host machine with gun head would be packed in a wooden case. The other one is the vibration bowl. They can’t be packed in one wooden case.



Our service



Before sales service
1 . Offer some cable ties for free.
2 . Offer the quality test of cable ties in our factory.
3 . Offer the quotation.
4 . Offer machine quality test before ship.

After sales service

1 . 12months in warranty and tech support all life.

2 . Online guide or onsite guide.



FAQ



1. What is your MOQ?

MOQ: 1pcs



2. What is the difference between SWIFT automatic cable tie tool and the traditional gun tool?

SWIFT automatic cable tie tool can automatically bundling wires/pipes. But they can’t. Workers need to thread, pull cable ties by hands.
