SWT25100D 220V Zip Tie Tool Bundle In Specific Location With Cable Tie
We can design the machine and help you to bundle the wires in specific location. It is very convenient for workers to bind it with cable ties.
SWT25100D specifications
| No. | Item | Description | Value |
| 1 | Model | SWT25100D | No |
| Desktop type | No | ||
| 2 | Size Of cable size | Width | 2.5mm |
| Length | 100mm | ||
| Thicker | 1.20Smm | ||
| 3 | Operation speed | For one cable tie | 0.8S |
| 4 |
Max banding Dia.
|
For wire | Ø 16mm |
| For tube | Ø 14mm | ||
| 5 | Min banding Dia. | For tube / wire | Ø 2mm |
| 6 | The feeding hose | No | No |
| 7 | The bending force | Keep forever once set | |
| 8 | Voltage | AC220V, 50 / 60Hz | |
| 9 | The gun V. | No | |
| 10 | Power | 1000W | |
| 11 | Pneumatic pressure | 3kg / cm² | |
| 12 | Warranty | 12 months | |

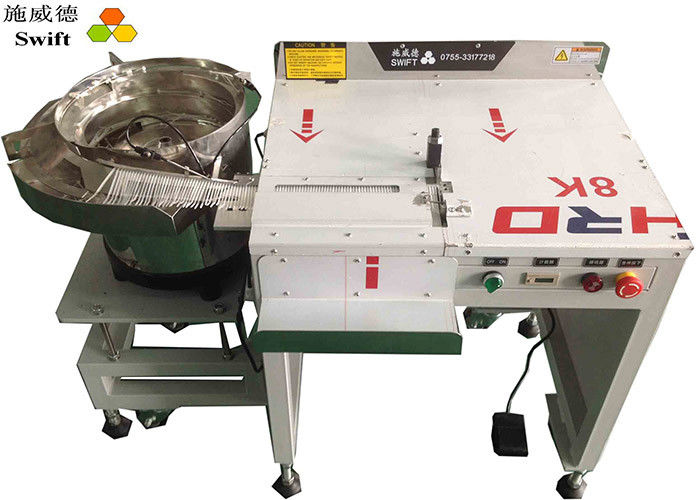

SWT25100D details
1 . Bundle the wires in specific location. We will install a measuring rule in the machine. But for standard machine, there is no the rule.
2 . The tightening force keeps stable after set in the factory. It would not change any more.
3 . Pedal the pedal, automatically feeding, wrapping, tightening and cutting off cable ties.
4 . With 4wheels
5 . The height of vibration bowl can be adjustable.
6 . Keep the machine horizontally.
Applications

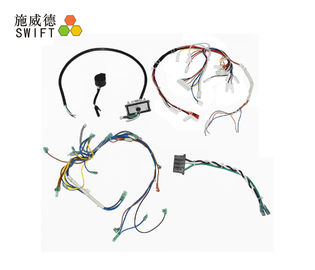

Bundling simple wire harness. And the max bundling Dia. is 14mm, the min Dia. is 2mm.
More than 14mm, it can't bind the goods.
Less than 2mm, it would happen that the cable tie is loose after bundle.
Trade terms
In general, we will quote you EXW price. If you need FOB Shenzhen or others, pls let us know.
After confirm the machine details and the payment, the machine will be finished within 10 - 15 days.
We accept TT payment only.
We will install a measuring rule in the machine. See the Picture.
Other cable tie machine type
Using loose cable ties, the width is 2.5mm and the length is 100mm.
| Model | SWT25100H | SWT25100F | SWT25100M | SWT25100HC |
| Using ways | Handheld type | Fixed type | Fixed type | Handheld type |
| Applications | Wiring harness | PVC sleeve | Motor coil | Wiring harness |
| Cable tie size | W2.5 * H100mm | W2.5 * H100mm | W2.5 * H100mm | W2.5 * H100mm |
| Max binding Dia. | Ø 16mm | Ø 18mm | Ø 13mm | Ø 18mm |
