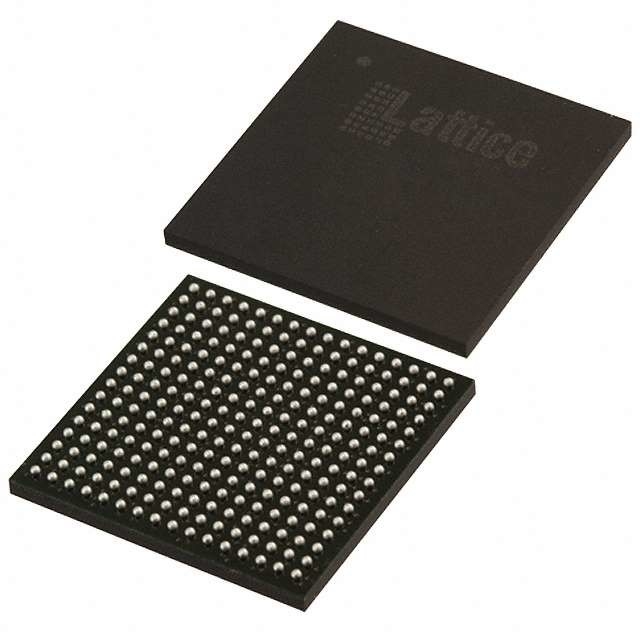

LCMXO2-4000HC-4FTG256C Field Programmable Gate Array FPGA IC 206 94208 4320 256-LBGA
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| FPGAs (Field Programmable Gate Array) | |
| Mfr | Lattice Semiconductor Corporation |
| Series | MachXO2 |
| Packaging | Tray |
| Number of LABs/CLBs | 540 |
| Number of Logic Elements/Cells | 4320 |
| Total RAM Bits | 94208 |
| Number of I/O | 206 |
| Voltage - Supply | 2.375V ~ 3.465V |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Package / Case | 256-LBGA |
| Supplier Device Package | 256-FTBGA (17x17) |
| Base Product Number | LCMXO2-4000 |
Features of LCMXO2-4000HC-4FTG256C
• I/Os support hot socketing
• On-chip differential termination
• Programmable pull-up or pull-down mode
• Flexible On-Chip Clocking
• Eight primary clocks
• Up to two edge clocks for high-speed I/O interfaces (top and bottom sides only)
• Up to two analog PLLs per device with fractional-n frequency synthesis
– Wide input frequency range (7 MHz to 400 MHz)
• Non-volatile, Infinitely Reconfigurable
• Instant-on – powers up in microseconds
• Single-chip, secure solution
• Programmable through JTAG, SPI or I2C
• Supports background programming of non-volatile memory
• Optional dual boot with external SPI memory
• TransFR™ Reconfiguration
• In-field logic update while system operates
• Enhanced System Level Support
• On-chip hardened functions: SPI, I2C, timer/counter
• On-chip oscillator with 5.5% accuracy
• Unique TraceID for system tracking
• One Time Programmable (OTP) mode
• Single power supply with extended operating range
• IEEE Standard 1149.1 boundary scan
• IEEE 1532 compliant in-system programming
• Broad Range of Package Options
• TQFP, WLCSP, ucBGA, csBGA, caBGA, ftBGA, fpBGA, QFN package options
• Small footprint package options
– As small as 2.5 mm x 2.5 mm
• Density migration supported
• Advanced halogen-free packaging
Descriptions of LCMXO2-4000HC-4FTG256C
Lattice provides a variety of design tools that allow complex designs to be efficiently implemented using the MachXO2 family of devices.
Popular logic synthesis tools provide synthesis library support for MachXO2. Lattice design tools use the synthesis tool
output along with the user-specified preferences and constraints to place and route the design in the MachXO2 device.
Environmental & Export Classifications of LCMXO2-4000HC-4FTG256C
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991D |
| HTSUS | 8542.39.0001 |
|
|
