| Brand Name: | Original |
| Model Number: | ADAU7002ACBZ-RL |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 3-4days |
| Payment Terms: | TT |
ADAU1466WBCPZ300RL 32BIT SIGMADSP AUDIO 24K/80K Integrated Circuit Chip
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Audio Special Purpose | |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Sample Rate Converter |
| Applications | Consumer Audio |
| Number of Channels | 2 |
| Interface | I2S |
| Voltage - Supply | 1.62V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Specifications | PDM-to-I2S |
| Mounting Type | Surface Mount |

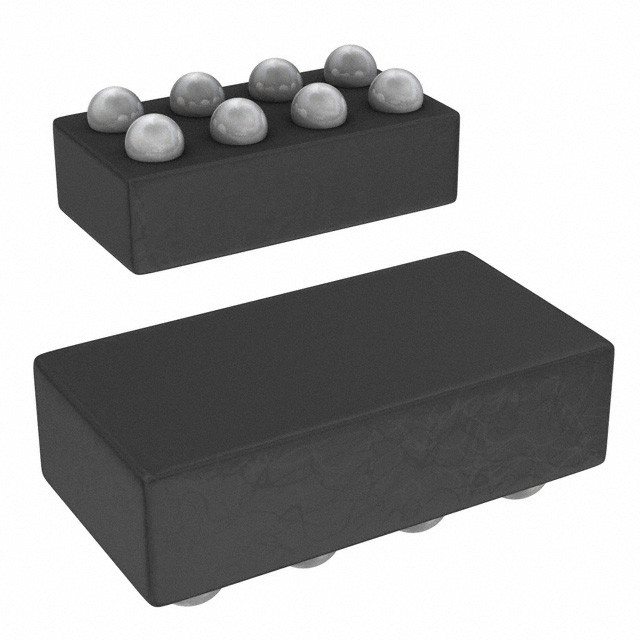

| Package / Case | 8-UFBGA, WLCSP |
| Supplier Device Package | 8-WLCSP (0.76x1.56) |
| Base Product Number | ADAU7002 |
Features of ADAU7002ACBZ-RL
Administrator:
64× decimation of a stereo pulse density modulation (PDM)
bit stream to pulse code modulation (PCM) audio data
Slave I2S or time division multiplexed (TDM) output interface
Configurable TDM slots
I/O supply operation: 1.62 V to 3.6 V
64× output sample rate PDM clock
64×/128×/192×/256×/384×/512× output sample rate BCLK
Automatic BCLK ratio detection
Output sample rate: 4 kHz to 96 kHz
Automatic PDM CLK drive at 64× the sample rate
Automatic power down with BCLK removal
0.67 mA operating current at 48 kHz and 1.8 V IOVDD supply
Shutdown current: <1 μA
8-ball, 1.56 mm × 0.76 mm, 0.4 mm pitch WLCSP
Power-on reset
Applications of ADAU7002ACBZ-RL
Mobile computing
Portable electronics
Consumer electronics
Environmental & Export Classifications of ADAU7002ACBZ-RL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
|
|
