| Brand Name: | Original |
| Model Number: | AD8206YRZ |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 3-4days |
| Payment Terms: | TT |

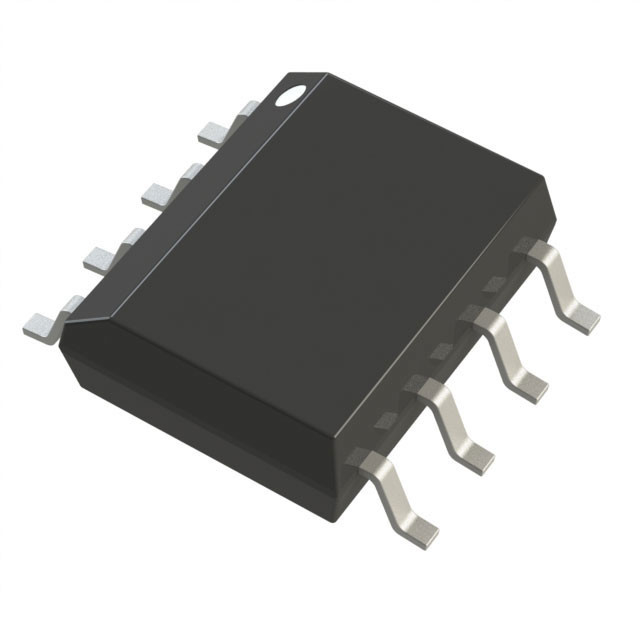

AD8206YRZ Integrated Circuit Chip Differential Amplifier 1 Circuit 8-SOIC
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Amplifier Type | Differential |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 0.5V/µs |
| -3db Bandwidth | 100 kHz |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 2mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD8206 |
Features of AD8206YRZ
Ideal for current shunt applications
High common-mode voltage range
−2 V to +65 V operating
−25 V to +75 V survival
Gain = 20
Wide operating temperature range
−40°C to +125°C for Y grade and WY grade
−40°C to +150°C for WH grade
Bidirectional operation
Available in 8-lead SOIC
Qualified for automotive applications
EXCELLENT AC AND DC PERFORMANCE
15 µV/°C offset drift
30 ppm/°C gain drift
80 dB CMRR dc to 20 kHz
Applications of AD8206YRZ
High-side current sensing in
Motor controls
Transmission controls
Diesel-injection controls
Engine management
Suspension controls
Vehicle dynamic controls
DC-to-dc converters
Environmental & Export Classifications of AD8206YRZ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
|
|
