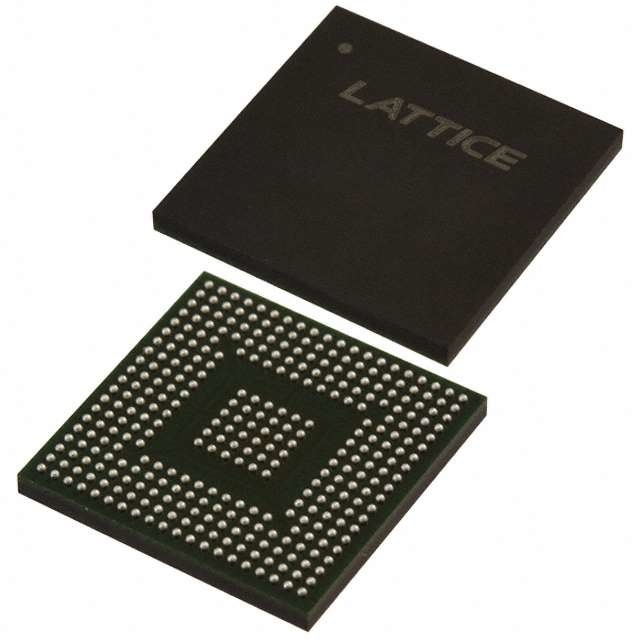

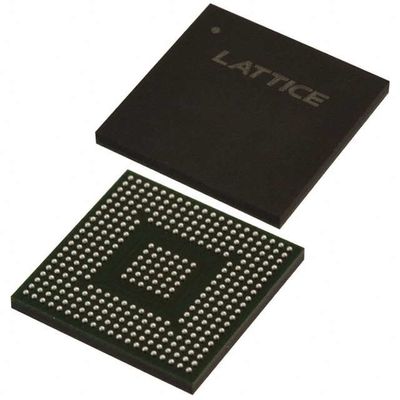

LCMXO2-4000HC-4BG332C Field Programmable Gate Array IC 274 94208 4320 332-FBGA
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| FPGAs (Field Programmable Gate Array) | |
| Mfr | Lattice Semiconductor Corporation |
| Series | MachXO2 |
| Packaging | Tray |
| Number of LABs/CLBs | 540 |
| Number of Logic Elements/Cells | 4320 |
| Total RAM Bits | 94208 |
| Number of I/O | 274 |
| Voltage - Supply | 2.375V ~ 3.465V |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Package / Case | 332-FBGA |
| Supplier Device Package | 332-CABGA (17x17) |
| Base Product Number | LCMXO2-4000 |
Features of LCMXO2-4000HC-4BG332C
• Embedded and Distributed Memory
• Up to 240 kbits sysMEM™ Embedded Block RAM
• Up to 54 kbits Distributed RAM
• Dedicated FIFO control logic
• On-Chip User Flash Memory
• Up to 256 kbits of User Flash Memory
• 100,000 write cycles
• Accessible through WISHBONE, SPI, I2C and JTAG interfaces
• Can be used as soft processor PROM or as Flash memory
• Pre-Engineered Source Synchronous I/O
• DDR registers in I/O cells
• Dedicated gearing logic
• 7:1 Gearing for Display I/Os
• Generic DDR, DDRX2, DDRX4
• Dedicated DDR/DDR2/LPDDR memory with DQS support
• High Performance, Flexible I/O Buffer
• Programmable sysIO™ buffer supports wide range of interfaces:
– LVCMOS 3.3/2.5/1.8/1.5/1.2
– LVTTL
– PCI
– LVDS, Bus-LVDS, MLVDS, RSDS, LVPECL
– SSTL 25/18
– HSTL 18
– Schmitt trigger inputs, up to 0.5 V hysteresis
• I/Os support hot socketing
• On-chip differential termination
• Programmable pull-up or pull-down mode
Descriptions of LCMXO2-4000HC-4BG332C
Lattice provides many pre-engineered IP (Intellectual Property) LatticeCORE™ modules, including a number of
reference designs licensed free of charge, optimized for the MachXO2 PLD family. By using these configurable soft
core IP cores as standardized blocks, users are free to concentrate on the unique aspects of their design, increasing their productivity.
Environmental & Export Classifications of LCMXO2-4000HC-4BG332C
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991D |
| HTSUS | 8542.39.0001 |
|
|
