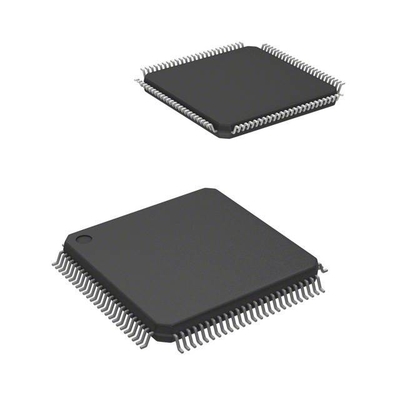

LCMXO2-256HC-4TG100I MachXO2 Field Programmable Gate Array (FPGA) IC 55 256 100-LQFP

LCMXO2-256HC-4TG100I MachXO2 Field Programmable Gate Array (FPGA) IC 55 256 100-LQFP

  • High Light

    LCMXO2-256HC-4TG100I

    ,

    100-LQFP MachXO2 FPGA IC

    ,

    MachXO2 Field Programmable Gate Array

  • Number Of LABs/CLBs
    32
  • Number Of Logic Elements/Cells
    256
  • Number Of I/O
    55
  • Voltage - Supply
    2.375V ~ 3.465V
  • Operating Temperature
    -40°C ~ 100°C (TJ)
  • Package / Case
    100-LQFP
  • Place of Origin
    Original
  • Brand Name
    Original
  • Certification
    Original
  • Model Number
    LCMXO2-256HC-4TG100I
  • Minimum Order Quantity
    1
  • Price
    Negotiation
  • Packaging Details
    carton box
  • Delivery Time
    3-4days
  • Payment Terms
    TT
  • Supply Ability
    100

LCMXO2-256HC-4TG100I MachXO2 Field Programmable Gate Array (FPGA) IC 55 256 100-LQFP

LCMXO2-2000HC-4TG144C Integrated Circuit Chip FPGA 111 I/O 144TQFP


Chips from factories. All are new and original. Pls inform us the part number and qty when to inquiry.

Specifications of LCMXO2-256HC-4TG100I



TYPE DESCRIPTION
Category Integrated Circuits (ICs)
  Embedded
  FPGAs (Field Programmable Gate Array)
Mfr Lattice Semiconductor Corporation
Series MachXO2
Packaging Tray
Number of LABs/CLBs 32
Number of Logic Elements/Cells 256
Number of I/O 55
Voltage - Supply 2.375V ~ 3.465V
Mounting Type Surface Mount
Operating Temperature -40°C ~ 100°C (TJ)
Package / Case 100-LQFP
Supplier Device Package 100-TQFP (14x14)
Base Product Number LCMXO2-256



Features of LCMXO2-256HC-4TG100I


• High Performance, Flexible I/O Buffer
• Programmable sysIO™ buffer supports wide range of interfaces:
– LVCMOS 3.3/2.5/1.8/1.5/1.2
– LVTTL
– PCI
– LVDS, Bus-LVDS, MLVDS, RSDS, LVPECL
– SSTL 25/18
– HSTL 18
– Schmitt trigger inputs, up to 0.5 V hysteresis
• I/Os support hot socketing
• On-chip differential termination
• Programmable pull-up or pull-down mode
• Flexible On-Chip Clocking
• Eight primary clocks
• Up to two edge clocks for high-speed I/O interfaces (top and bottom sides only)
• Up to two analog PLLs per device with fractional-n frequency synthesis
– Wide input frequency range (7 MHz to 400 MHz)
• Non-volatile, Infinitely Reconfigurable
• Instant-on – powers up in microseconds
• Single-chip, secure solution
• Programmable through JTAG, SPI or I2C
• Supports background programming of non-volatile memory
• Optional dual boot with external SPI memory
• TransFR™ Reconfiguration
• In-field logic update while system operates
• Enhanced System Level Support
• On-chip hardened functions: SPI, I2C, timer/counter
• On-chip oscillator with 5.5% accuracy
• Unique TraceID for system tracking
• One Time Programmable (OTP) mode
• Single power supply with extended operating range
• IEEE Standard 1149.1 boundary scan
• IEEE 1532 compliant in-system programming
• Broad Range of Package Options
• TQFP, WLCSP, ucBGA, csBGA, caBGA, ftBGA, fpBGA, QFN package options
• Small footprint package options
– As small as 2.5 mm x 2.5 mm
• Density migration supported
• Advanced halogen-free packaging







Descriptions of LCMXO2-256HC-4TG100I


MachXO2 devices provide commonly used hardened functions such as SPI controller, I2
C controller and timer/
counter. MachXO2-640/U and higher density devices also provide User Flash Memory (UFM). These hardened
functions and the UFM interface to the core logic and routing through a WISHBONE interface. The UFM can also
be accessed through the SPI, I2
C and JTAG ports.






Environmental & Export Classifications of LCMXO2-256HC-4TG100I


ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

LCMXO2-256HC-4TG100I MachXO2 Field Programmable Gate Array (FPGA) IC 55 256 100-LQFP 0
