| Brand Name: | Original |
| Model Number: | LCMXO2-2000HC-4FTG256C |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 3-4days |
| Payment Terms: | TT |

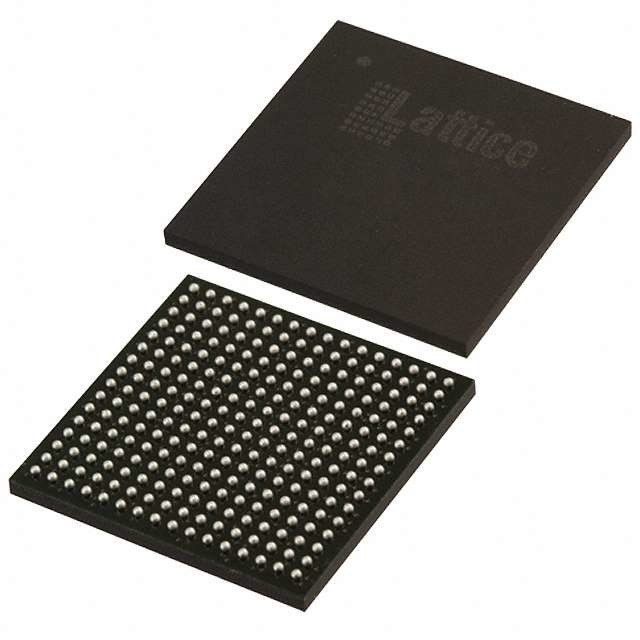

LCMXO2-2000HC-4FTG256C Field Programmable Gate Array IC 206 75776 2112 256-LBGA
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| FPGAs (Field Programmable Gate Array) | |
| Mfr | Lattice Semiconductor Corporation |
| Series | MachXO2 |
| Packaging | Tray |
| Number of LABs/CLBs | 264 |
| Number of Logic Elements/Cells | 2112 |
| Total RAM Bits | 75776 |
| Number of I/O | 206 |
| Voltage - Supply | 2.375V ~ 3.465V |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Package / Case | 256-LBGA |
| Supplier Device Package | 256-FTBGA (17x17) |
| Base Product Number | LCMXO2-2000 |
Features of LCMXO2-2000HC-4FTG256C
• Flexible Logic Architecture
• Six devices with 256 to 6864 LUT4s and 18 to 334 I/Os
• Ultra Low Power Devices
• Advanced 65 nm low power process
• As low as 22 µW standby power
• Programmable low swing differential I/Os
• Stand-by mode and other power saving options
• Embedded and Distributed Memory
• Up to 240 kbits sysMEM™ Embedded Block RAM
• Up to 54 kbits Distributed RAM
• Dedicated FIFO control logic
• On-Chip User Flash Memory
• Up to 256 kbits of User Flash Memory
• 100,000 write cycles
• Accessible through WISHBONE, SPI, I2C and JTAG interfaces
• Can be used as soft processor PROM or as Flash memory
• Pre-Engineered Source Synchronous I/O
• DDR registers in I/O cells
• Dedicated gearing logic
• 7:1 Gearing for Display I/Os
• Generic DDR, DDRX2, DDRX4
• Dedicated DDR/DDR2/LPDDR memory with DQS support
Descriptions of LCMXO2-2000HC-4FTG256C
The MachXO2 devices are available in two versions – ultra low power (ZE) and high performance (HC and HE) devices. The ultra low power devices are offered in three speed grades –1, –2 and –3, with –3 being the fastest.Similarly, the high-performance devices are offered in three speed grades: –4, –5 and –6, with –6 being the fastest.
Environmental & Export Classifications of LCMXO2-2000HC-4FTG256C
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991D |
| HTSUS | 8542.39.0001 |
|
|
