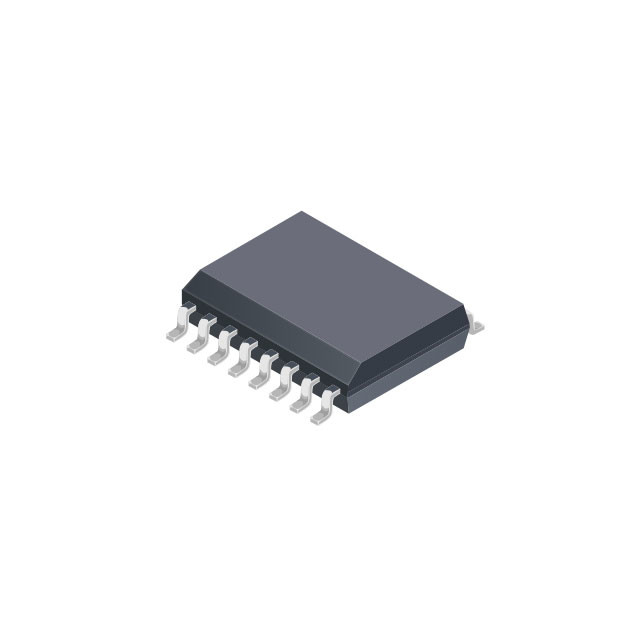

ACS733KLATR-40AB-T Current Sensor 40A 1 Channel Hall Effect Differential Bidirectional
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Current Sensors | |
| Mfr | Allegro MicroSystems |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Differential |
| Current - Sensing | 40A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 33mV/A |
| Frequency | 1MHz |
| Linearity | ±0.5% |
| Accuracy | ±1.7% |
| Voltage - Supply | 3.14V ~ 3.46V |
| Response Time | 200ns |
| Current - Supply (Max) | 35mA |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ACS733 |
Features of ACS733KLATR-40AB-T
• AEC-Q100 automotive qualified
• High bandwidth, 1 MHz analog output
• Differential Hall sensing rejects common-mode fields
• High-isolation SOIC16 wide body package provides galvanic isolation for high-voltage applications
• Integrated shield virtually eliminates capacitive coupling from current conductor to die, greatly suppressing output noise due to high dv/dt transients
• Industry-leading noise performance with greatly improved bandwidth through proprietary amplifier and filter design
• UL60950-1 (ed. 2) certified
□ Dielectric Strength Voltage = 3.6 kVRMS
□ Basic Isolation Working Voltage = 616 VRMS
• Fast and externally configurable overcurrent fault detection
• 1 mΩ primary conductor resistance for low power loss and high inrush current withstand capability
• Options for 3.3 V and 5 V single supply operation
• Output voltage proportional to AC and DC current
• Factory-trimmed sensitivity and quiescent output voltage for improved accuracy
• Nearly zero magnetic hysteresis
• Ratiometric output from supply voltage
Applications of ACS733KLATR-40AB-T
The ACS732 and ACS733 are a new generation of high bandwidth current sensor ICs from Allegro™. These devices provide a compact, fast, and accurate solution for measuring high-frequency currents in DC/DC converters and other switching power applications. The ACS732 and ACS733 offer high isolation, high bandwidth Hall-effect-based current sensing with user-configurable overcurrent fault detection.
These features make them ideally suited for high-frequency transformer and current transformer replacement in applications running at high voltages.
Environmental & Export Classifications of ACS733KLATR-40AB-T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
|
|
