| Brand Name: | Original |
| Model Number: | A3212ELHLT-T |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 3-4days |
| Payment Terms: | TT |

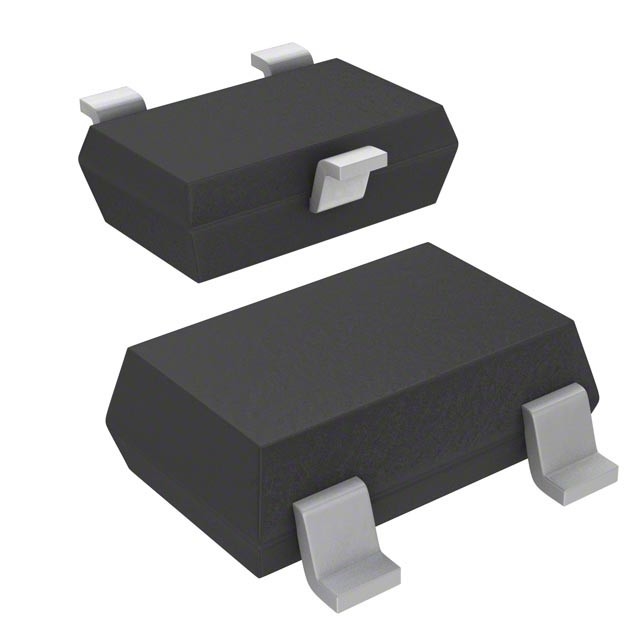

A3212ELHLT-T Digital Switch Omnipolar Switch Open Drain Hall Effect SOT-23W
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Magnetic Sensors | |
| Switches (Solid State) | |
| Mfr | Allegro MicroSystems |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Omnipolar Switch |
| Technology | Hall Effect |
| Polarization | North Pole, South Pole |
| Sensing Range | ±5.5mT Trip, ±1mT Release |
| Test Condition | -40°C ~ 85°C |
| Voltage - Supply | 2.5V ~ 3.5V |
| Current - Supply (Max) | 2mA |
| Current - Output (Max) | 1mA |
| Output Type | Open Drain |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23W |
| Package / Case | SOT-23W |
| Base Product Number | A3212 |
Features of A3212ELHLT-T
• AEC-Q100 automotive qualified
• Micropower operation
• Operation with north or south pole
• 2.5 to 3.5 V battery operation
• Chopper stabilized
□ Superior temperature stability
□ Extremely low switch point drift
□ Insensitive to physical stress
• High ESD protection
• Solid-state reliability
• Small size
• Easily manufacturable with magnet pole independence
Applications of A3212ELHLT-T
The A3211 and A3212 integrated circuits are ultrasensitive, pole independent Hall-effect switches with latched digital output.
These devices are especially suited for operation in batteryoperated, hand-held equipment such as cellular and cordless telephones, pagers, and palmtop computers.
A 2.5 to 3.5 V operation and a unique clocking scheme reduce the average operating power requirements to less than 15 μW with a 2.75 V supply
Environmental & Export Classifications of A3212ELHLT-T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
|
|
