| Brand Name: | Original |
| Model Number: | ADR5043ARTZ-REEL7 |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 3-4days |
| Payment Terms: | TT |

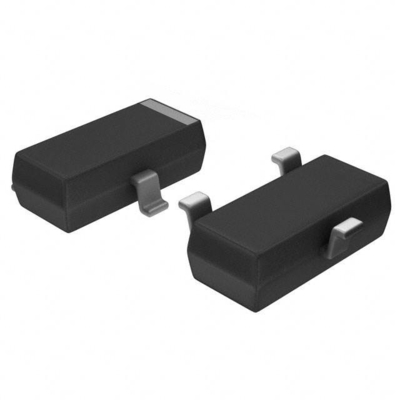

ADR5043ARTZ-REEL7 Shunt Voltage Reference IC Fixed 3V V ±0.2% 15 mA SOT-23-3
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Manufacturer | Analog Devices Inc. |
| Series | ADR504 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Reference Type | Shunt |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 3V |
| Current - Output | 15 mA |
| Tolerance | ±0.2% |
| Temperature Coefficient | 100ppm/°C |
| Noise - 0.1Hz to 10Hz | 4.3µVrms |
| Noise - 10Hz to 10kHz | 180µVrms |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 60 µA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | ADR5043 |
Features of ADR5043ARTZ-REEL7
Administrator:
Ultracompact SC70 and SOT-23 packages
Low temperature coefficient: 75 ppm/°C (maximum)
Pin compatible with LM4040/LM4050
Initial accuracy: ±0.1%
No external capacitor required
Wide operating current range: 50 µA to 15 mA
Extended temperature range: −40°C to +125°C
Qualified for automotive applications
Applications of ADR5043ARTZ-REEL7
Portable, battery-powered equipment
Automotives
Power supplies
Data acquisition systems
Instrumentation and process control
Energy management
Environmental & Export Classifications of ADR5043ARTZ-REEL7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
|
|
