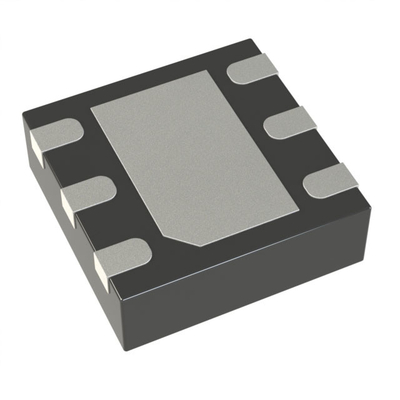

ADP191ACBZ-R7 Power Switch/Driver 1:1 P-Channel 500mA 4-WLCSP (0.76x0.76)
TYPE | DESCRIPTION |
Category | Integrated Circuits (ICs) |
Power Management (PMIC) | |
Power Distribution Switches, Load Drivers | |
Mfr | Analog Devices Inc. |
Series | - |
Packaging | Tape & Reel (TR) |
Cut Tape (CT) | |
Switch Type | General Purpose |
Number of Outputs | 1 |
Ratio - Input:Output | 1:01 |
Output Configuration | High Side |
Output Type | P-Channel |
Interface | On/Off |
Voltage - Load | 1.1V ~ 3.6V |
Voltage - Supply (Vcc/Vdd) | Not Required |
Current - Output (Max) | 1.1A |
Rds On (Typ) | 50mOhm |
Input Type | Non-Inverting |
Features | Slew Rate Controlled |
Fault Protection | Reverse Current |
Operating Temperature | -40°C ~ 125°C (TJ) |
Mounting Type | Surface Mount |
Supplier Device Package | 6-LFCSP-UD (2x2) |
Package / Case | 6-UDFN Exposed Pad, CSP |
Base Product Number | ADP195 |
Features of ADP195ACPZ-R7
Ultralow on resistance (RDSON)
50 mΩ @ 3.6 V
55 mΩ @ 2.5 V
65 mΩ @ 1.8 V
100 mΩ @ 1.2 V
Input voltage range: 1.1 V to 3.6 V
1.1 A maximum continuous operating current
Low enable control logic threshold can be operated from
1.2 V to 3.3 V
Low 1 μA (typical) ground current @ 1.8 V
Low 4 μA (maximum) reverse current @ 3.6 V
Ultralow shutdown current: 0.7 μA (typical) @ 1.8 V
Reverse current blocking
Tiny 4-ball wafer level chip scale package (WLCSP)
1.0 mm × 1.0 mm, 0.5 mm pitch
Tiny 6-lead lead frame chip scale package (LFCSP)
2.0 mm × 2.0 mm × 0.55 mm, 0.65 mm pitch
Applications of ADP191ACBZ-R7
Mobile phones
Digital cameras and audio devices
GPS devices
Personal media players
Portable and battery-powered equipment
Environmental & Export Classifications of ADP195ACPZ-R7
ATTRIBUTE | DESCRIPTION |
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.39.0001 |
