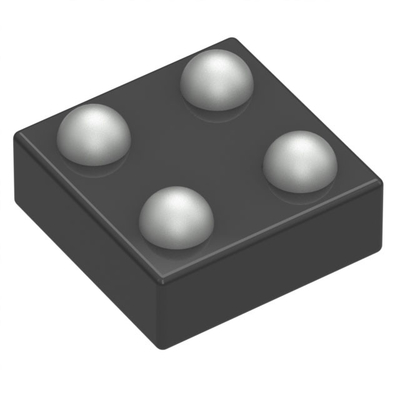

ADP191ACBZ-R7 Power Switch/Driver 1:1 P-Channel 500mA 4-WLCSP (0.76x0.76)
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:01 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 1.1V ~ 3.6V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | 80mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Slew Rate Controlled |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-WLCSP (0.76x0.76) |
| Package / Case | 4-WFBGA, WLCSP |
| Base Product Number | ADP191 |
Features of ADP191ACBZ-R7
Low RDSON of 105 mΩ at 1.8 V
Internal output discharge resistor (ADP191)
Turn-on slew rate limiting (ADP191)
Low input voltage range: 1.1 V to 3.6 V
500 mA continuous operating current
Built-in level shift for control logic that can be operated
by 1.2 V logic
Low 2 μA (maximum) ground current
Ultralow shutdown current: <1 μA
Ultrasmall 0.8 mm × 0.8 mm, 4-ball, 0.4 mm pitch WLCSP
Applications of ADP191ACBZ-R7
Microprocessor systemsAdministrator:
Mobile phones
Digital cameras and audio devices
Portable and battery-powered equipmen
Environmental & Export Classifications of ADP191ACBZ-R7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
|
|
