| Brand Name: | Original |
| Model Number: | AD2428WCCSZ-RL |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 3-4days |
| Payment Terms: | TT |
ADXL345 Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 0.05Hz ~ 1.6kHz 14-LGA (3x5)
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Audio Special Purpose | |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Audio Transceiver |
| Applications | Audio |
| Number of Channels | 1 |
| Interface | I2C, I2S |
| Voltage - Supply | 3V ~ 3.63V |
| Operating Temperature | -40°C ~ 105°C |
| Specifications | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Grade | Automotive |

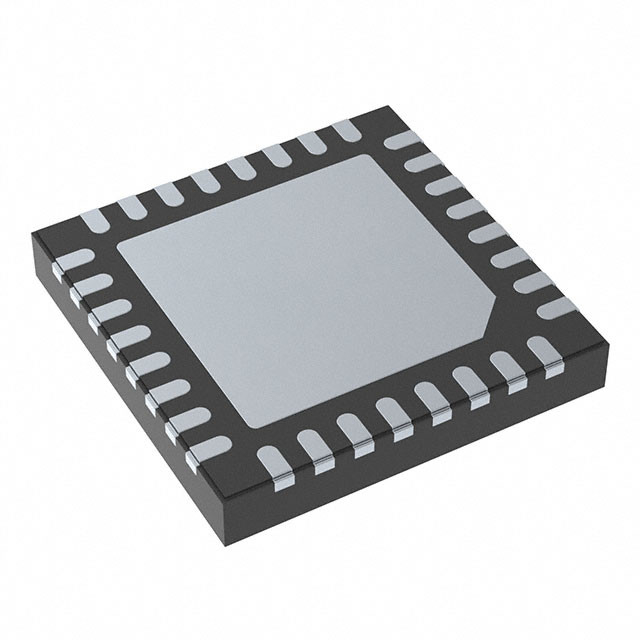

| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-SS (5x5) |
| Base Product Number | AD2428 |
A2B TRANSCEIVER FEATURES of AD2428WCCSZ-RL
Configurable A2B bus master or slave operation
I2C interface
8-bit to 32-bit multichannel I2S/TDM interface
Programmable I2S/TDM data rate
Up to 32 upstream and 32 downstream channels
PDM interface
Programmable PDM clock rate
Up to 4 high dynamic range microphone inputs
Simultaneous reception of I2S data with up to 4 PDM
microphones
Unique ID register for each transceiver
Crossover or straight-through cabling
Programmable settings to optimize EMC performance
Applications of AD2428WCCSZ-RL
Audio communication link
Microphone arrays
Beamforming
Hands free and in car communication
Active and road noise cancellation
Audio/video conferencing systems
Environmental & Export Classifications of AD2428WCCSZ-RL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
|
|
