| Brand Name: | Original |
| Model Number: | BCM56568B0KFSBG |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 3-4days |
| Payment Terms: | TT |
BCM56568B0KFSBG Ethernet Switch 10/100/1000 Base-T PHY Ethernet Interface BGA
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Controllers | |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Tray |
| Protocol | Ethernet |
| Function | Switch |
| Interface | Ethernet |
| Standards | 10/100/1000 Base-T PHY |
| Voltage - Supply | - |
| Operating Temperature | - |
| Supplier Device Package | BGA (29x29) |
| Base Product Number | BCM56160 |

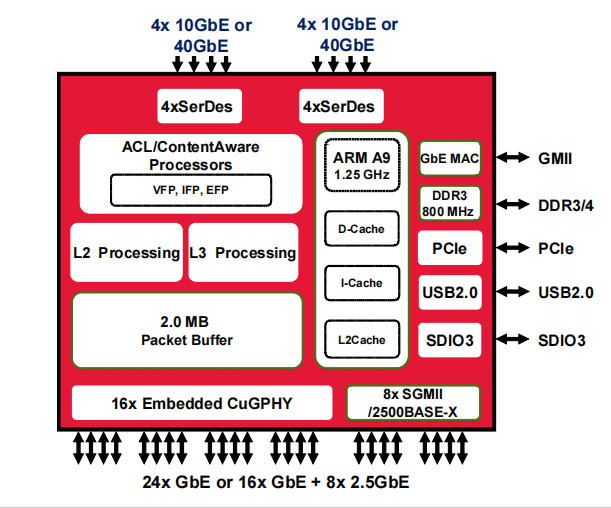

Benefits of BCM56568B0KFSBG
• Highly integrated 24-port 10/100/1000 Mbps Ethernet switch with 16 integrated copper 10/100/1000 PHYs.
• Eight ports support either SGMII or 2500BASE-X, or two QSGMIIs for interfacing to an Octal GbE PHY.
• Eight 10GbE stacking or uplink ports, configured as XFI, HiGig[10], HGd[20], HGd[25], or 40GbE.
• HiGig-Duo™[25] ports for nonblocking 48-port stackable design.
• Fully integrated 2 MB packet buffer, provides 4 MB in the 48-port configuration.
• Intelligent Memory Management Unit (MMU) optimized for handling bursty data traffic.
• L2, IPv4/IPv6 L3 packet classification.
• Flow-based classification, metering, and marking of frames.
• Enhanced DoS attack statistics gathering.
• Industrial temperature support.
• Network-time synchronization.
• 1588 (1-Step TC) support.
• Integrated ARM A9 CPU.
• Advanced three-stage ContentAware Engine.
• Enhance security and visibility into tunnels
• Full IPv4 and IPv6 support.
• Low-power Energy Efficient Ethernet support.
Applications of BCM56568B0KFSBG
• Single-chip switch optimized for L2-managed and light L3 Ethernet connectivity applications.
• Supports Wave2 data rates of 2.5 Gbps on eight of the 24 ports.
• Optimized for entry-level edge access applications for enterprise and service provider.
• EEE lowers PHY power in periods of low traffic.
• Eight flexible Class of Service (CoS) queues per port assure the lowest latency to highpriority traffic. This capability supports a wide variety of delay sensitive video and audio multicast applications.
• Based on industry-leading and market-proven StrataXGS architecture and supports the HiGig2 protocol for connection to other StrataXGS devices.
• IPv6 support provides future-proofing.
• Flow-based classification, policing, marking, and queuing.
• IEEE 802.1br Port Extender works with Controlling Bridge.
• IEEE-1588 for Industrial Ethernet applications
• Synchronous Ethernet provides timing. accuracy for delay-sensitive applications such as voice and video.
• Low-power 28 nm CMOS technology.
Environmental & Export Classifications of BCM56568B0KFSBG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | 5A991C |
| HTSUS | 8542.39.0001 |
|
|
| Brand Name: | Original |
| Model Number: | BCM56568B0KFSBG |
| MOQ: | 1 |
| Price: | Negotiation |
| Packaging Details: | carton box |
| Payment Terms: | TT |
BCM56568B0KFSBG Ethernet Switch 10/100/1000 Base-T PHY Ethernet Interface BGA
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Controllers | |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Tray |
| Protocol | Ethernet |
| Function | Switch |
| Interface | Ethernet |
| Standards | 10/100/1000 Base-T PHY |
| Voltage - Supply | - |
| Operating Temperature | - |
| Supplier Device Package | BGA (29x29) |
| Base Product Number | BCM56160 |

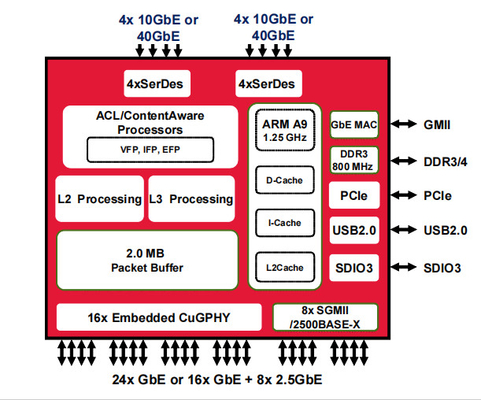

Benefits of BCM56568B0KFSBG
