| Brand Name: | Original |
| Model Number: | XC2S50E-6TQ144C |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 3-4days |
| Payment Terms: | TT |

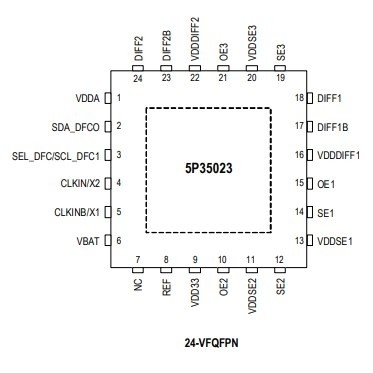

5P35023B-155NLGI8 Clock/Timing Integrated Circuit IC CLOCK GENERATOR 24QFN
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Generators, PLLs, Frequency Synthesizers | |
| Manufacturer | Renesas Electronics Corporation |
| Series | * |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Base Product Number | 5P35023 |
Features of 5P35023B-155NLGI8
▪ Configurable OE pin function as OE, PD#, PPS or DFC control function
▪ Configurable PLL bandwidth; minimizes jitter peaking
▪ PPS: Proactive Power Saving features save power during the end device power down mode
▪ PPB: Performance Power Balancing feature allows minimum power consumption based on required performance
▪ DFC: Dynamic Frequency Control feature allows user to dynamically switch between and up to 4 different frequencies smoothly
▪ Two PLLs support independent spread spectrum clocks to lower system EMI
▪ Store user configuration into OTP memory
▪ I^2 C interface
▪ Available in Automotive Grade 2 (-40°C to +105°C) or industrial (-40° to +85°) temperature ranges
▪ 2 DIFF outputs with configurable LP-HSCL, LVDS, LVPECL, LVCMOS output pairs. 1MHz–500MHz (160MHz with LVCMOS mode)
▪ 3 LVCMOS outputs: 1MHz–160MHz
▪ Maximum 8 LVCMOS outputs as REF + 3 × SE + 2 × DIFF_T/C as LVCMOS
▪ Low power 32.768kHz clock supported for all SE1–SE3
Applications of 5P35023B-155NLGI8
▪ PCIe Gen1–3 clock generator
▪ Consumer application crystal replacements
▪ SmartDevice, Handheld
▪ Computing and consumer applications
▪ Automotive applications (infotainment, dashboard, camera/vision, computing, networking)
Environmental & Export Classifications of 5P35023B-155NLGI8
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
|
|
