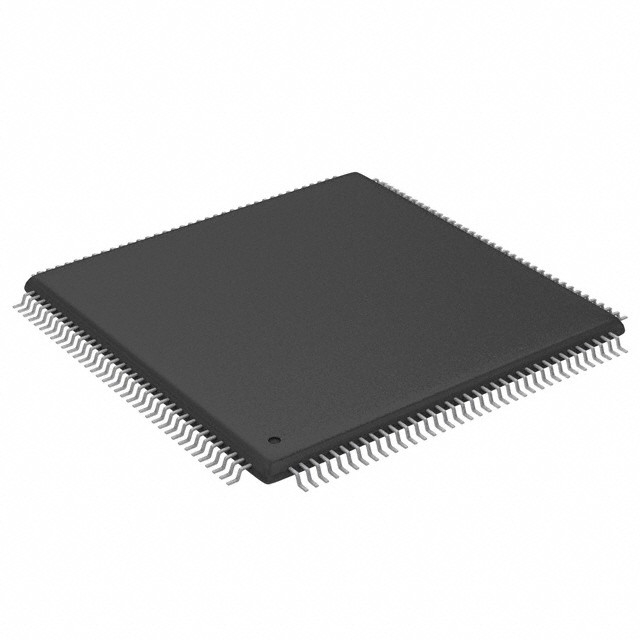

XC2S50E-6TQ144C Field Programmable Gate Array (FPGA) IC 102 32768 1728 144-LQFP
XC2S50E-6TQ144C are from factory inventory, pls check your demands and pls contact us with with target price.
Specifications of XC2S50E-6TQ144C
| Type | Description |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| FPGAs (Field Programmable Gate Array) | |
| Mfr | AMD |
| Series | Spartan®-IIE |
| Package | Tray |
| Number of LABs/CLBs | 384 |
| Number of Logic Elements/Cells | 1728 |
| Total RAM Bits | 32768 |
| Number of I/O | 102 |
| Number of Gates | 50000 |
| Voltage - Supply | 1.71V ~ 1.89V |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-TQFP (20x20) |
| Base Product Number | XC2S50E |
Features of XC2S50E-6TQ144C
• Second generation ASIC replacement technology
- Densities as high as 15,552 logic cells with up to 600,000 system gates
- Streamlined features based on Virtex®
- E FPGA architecture-Unlimited in-system reprogrammability
- Very low cost-Cost-effective 0.15 micron technology
• System level features
- SelectRAM™ hierarchical memory:
· 16 bits/LUT distributed RAM
· Configurable 4K-bit true dual-port block RAM
· Fast interfaces to external RAM
- Fully 3.3V PCI compliant to 64 bits at 66 MHz and CardBus compliant
- Low-power segmented routing architecture
- Dedicated carry logic for high-speed arithmetic
- Efficient multiplier support
- Cascade chain for wide
- input functions
- Abundant registers/latches with enable, set, reset
- Four dedicated DLLs for advanced clock control
· Eliminate clock distribution delay
· Multiply, divide, or phase shift-Four primarylow
- skewglobalclockdistributionnets
- IEEE 1149.1 compatible boundary scan logic
• Versatile I/O and packaging
- Pb-free package options
- Low
- cost packages available in all densities
- Family footprint compatibility in common packages
- 19 high-performance interface standards·LVTTL, LVCMOS, HSTL, SSTL, AGP, CTT, GTL·LVDS and LVPECL differential I/O
- Up to 205 differential I/O pairs that can be input, output, or bidirectional
- Hot swap I/O (CompactPCI friendly)
• Core logic powered at 1.8V and I/Os powered at 1.5V, 2.5V, or 3.3V
• Fully supported by powerful Xilinx® ISE® development system
- Fully automatic mapping, placement, and routing
- Integrated with design entry and verification tools
- Extensive IP library including DSP functions and soft processors
Spartan-IIE Family Compared to Spartan-II Family
• Higher density and more I/O
• Higher performance
• Unique pinouts in cost-effective packages
• Differential signaling-LVDS, Bus LVDS, LVPECL
• VCCINT = 1.8V-Lower power-5V tolerance with external resistor-3V tolerance directly
• PCI, LVTTL, and LVCMOS2 input buffers powered by VCCO instead of VCCINT
• Unique larger bitstream
Environmental & Export Classifications of XC2S50E-6TQ144C
| Attribute | Description |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
