| Brand Name: | Original |
| Model Number: | CSR8670C-IBBH-R |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 3-4days |
| Payment Terms: | TT |

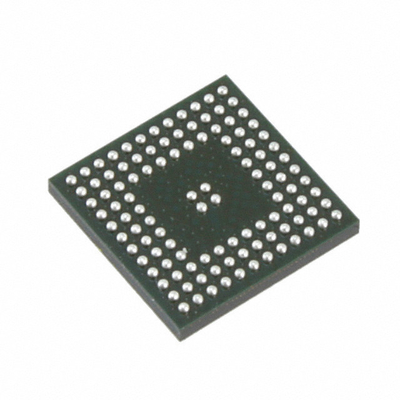

CSR8670C-IBBH-R IC Chip RF TxRx + MCU Bluetooth Bluetooth v4.0 2.4GHz 112-VFBGA
CSR8670C-IBBH-R are from factory inventory, pls check your demands and pls contact us with with target price.
Specifications of CSR8670C-IBBH-R
| Type | Description |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | Qualcomm |
| Series | BlueCore® CSR8670™ |
| Package | Tape & Reel (TR) |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v4.0 |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate (Max) | - |
| Power - Output | 10dBm |
| Sensitivity | -90dBm |
| Memory Size | 16MB Flash, 56kB RAM |
| Serial Interfaces | I2C, I2S, SPI, UART, USB |
| GPIO | 14 |
| Voltage - Supply | 3.3V |
| Current - Receiving | - |
| Current - Transmitting | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 112-VFBGA |
| Supplier Device Package | 112-VFBGA (6.5x6.5) |
| Base Product Number | CSR8670 |
Features of CSR8670C-IBBH-R
luetooth version 4.2 compliant
80MHz programmable Qualcomm®Kalimba™ DSP with integrated multipoint A2DP and HFP audio applications
aptX, aptX Low Latency, MP3, AAC and SBC audio codecs
2-mic cVc 8th Generation voice processing technology with wideband speech
Audio tuning suite with audio enhancements and two 5-band EQs
GAIA V2 and associated Android & iOS example apps for enhanced connectivity with mobile devices
Link Layer Topology support for enhanced multi-device co-existence
Stereo ADC with 2 microphone inputs and one line input; support for up to 6 digital microphones; stereo DAC
Qualcomm TrueWireless stereo
Support for Apple MFi¹ & Apple ANCS for enhanced communication with iOS devices
Qualcomm® meloD™ Audio Processing stereo widening technology
Compatible with third party solutions available from selected eXtension Program members
Descriptions of CSR8670C-IBBH-R
CSR8670 is a premium-tier flash product in our CSR86xx Bluetooth audio SoC portfolio designed to deliver high quality wireless audio performance and support development of highly differentiated premium wireless audio products.
CSR8670 is part of the CSR86xx portfolio, a range of silicon platforms for wireless audio applications which integrate a dual-mode Bluetooth radio, a low power DSP, an application processor, a battery charger, memory and various audio and hardware interfaces into a single-chip solution.
Environmental & Export Classifications of CSR8670C-IBBH-R
| Attribute | Description |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.39.0001 |
|
|
