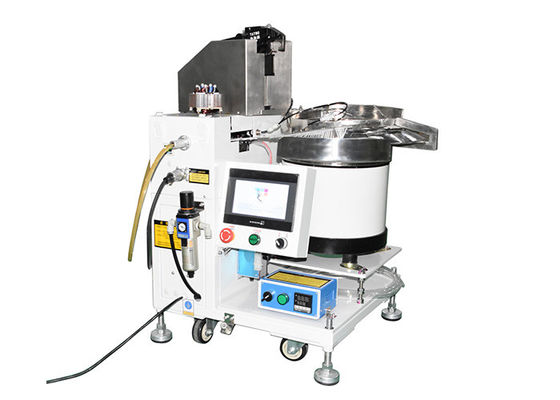

1200pcs Bundle Productivity 80N Auto Wire Tie Machine
1200pcs Bundle Productivity 80N Adjustable Of Automatic Cable Tie Gun
Automatic cable tie machine SWT25100M is more suitable for binding motor coils for vacuum cleaners, air compressors, chainsaws etc.
Features of electric cable tie gun
1. Be suitable for bundling small Ac electric motors, or objects with small room to go through nylon zip ties.
2. Automatic cable tie gun asks for good loose cable ties that are without burr/flash. They are straight and stronger.
3. Automatic cable tie gun can be fixed in work top or assembly lines.
4. Once operator treads the foot pedal, nylon zip ties would be wrapped, tightened and cut off automatically. And it just takes 1.0 second.
5. The waste material could be collected into a box. It meets highly environmental requirements.
6. The electric cable tie gun works with the host machine. The host machine can transfer nylon cable ties to the tie gun.
7. The bundle productivity is 1200pcs per hour. The bundle speed for the tie gun is certain. But operator will spend some time picking up products and place them.
Specifications of automatic cable tie machine
|Cable ties model||T25100|
|Cable tie size||W2.5mm * L100mm * T1.1mm|
|Cable ties material||Nylon PA 6.6|
|Min binding dia. for coils||ø9 mm|
|Max binding dia. for coils||ø13 mm|
|Operation speed||1.0S/cable tie|
|Electrical power||Host machine: AC 220V, 50/60 Hz, different plugs|
|Tie gun: DC 24V(connected with host machine, automatic switching)|
|Pneumatic pressure||5 kg/ cm²|
|Maximum tension force||80 N(20-80N adjustable)|
|Bundle productivity||1200 - 1500 pcs/h|
|Weight||Host machine:140 kg ( With 4 wheels )|
|Tie gun: 6kg/unit|
|Certificate||CE & RoHS|
Application of automatic cable tie machine
1. Bundling series of excited motors, such as vacuum cleaner motors, air compressor motors or electric saw motors.
2. Other objects with small room to go through nylon zip ties.
3. Wire harness bundled with motor coils.
Advantages of automatic bundle machine
1. Automatic cable tie machine can help you realize automation and improve the work efficiency.
2. Electric cable tie gun can tie 1,200pcs or more nylon cable ties a hour.
3. PLC control system and touch panel. It is easy to manage the nylon cable tie machine.
4. Automatic cable tie machine is made of metal material, not plastic. The working life is longer.
5. Automatic detect the failure: automatic cable tie machine would stop working if there is any malfunction and deal with the failed nylon tie wraps, then restart.
The host machine would be packed in a wooden case.
The vibration bowl would be packed in a wooden case.
Nylon cable ties T25100 would be packed in carton boxes.
1. Lead time for automatic cable tie machine: 12-15woking days.
2. Lead time for lots of nylon cable ties: 10 days
3. Be shipped by air/FedEx/DHL/sea
4. 1 year warranty and tech support forever.
1. How long does it take to get a quote back?
It is within 24hours. And it would take some time to confirm which automatic cable tie machine is more suitable for you and your products.
2. Can automatic cable tie machine use different nylon cable ties?
No, it can’t. One machine can deal with a kind of nylon cable ties.
3. What kind of certificate do your products have?
CE, RoHS, REACH and UL.
