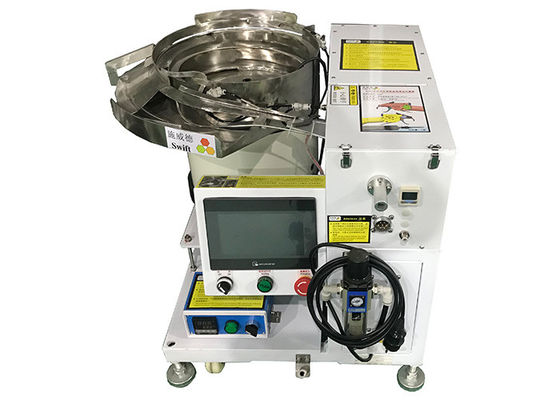

60 Hz Electric DC24V 0.7S Nylon Cable Tie Machine

60 Hz Electric DC24V 0.7S Nylon Cable Tie Machine
60 Hz Electric DC24V 0.7S Nylon Cable Tie Machine
video play

Large Image :  60 Hz Electric DC24V 0.7S Nylon Cable Tie Machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: SWIFT
Certification: CE, RoHS
Model Number: SWT25100H
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 10 -15days
Payment Terms: T/T
Supply Ability: 100pcs/month
Detailed Product Description
Bundle Productivity: 1800pcs/h Bundle Speed: 0.7S(Not Including Auxiliary Time)
Bundle Forces: 20N-80N Applicant Cable Ties: W2.5mm * L100mm *T1.1mm, Loose
Cable Ties Model: T25100 Bundle Dia.: 2mm - 18mm
Pneumatic Pressure: 5kg/cm2 Voltage: AC220V,50/60Hz
High Light:

0.7S Nylon Cable Tie Machine

,

DC24V Nylon Cable Tie Machine

,

60 Hz Nylon Cable Tie Machine

60 Hz Electric DC24V 0.7S Nylon Cable Tie Machine



The automatic cable tie machine is dedicated to tie nylon cable ties automatically and can be used in production line. The bundle speed is 0.7 second, not including auxiliary time.



Features of automatic cable tie gun



1. PLC cooperates with the man-machine interface, the operation is intuitive, simple and clear.



2. Automatic cable tie machine is made from structural steel and alloy steel. It is durable.



3. Handheld cable tie gun can be applied to the robot or full automation line.



4. Automatic detecting jammed: if there is any cable ties jammed in the tie gun or the host, automatic cable tie machine would stop working and clean jammed cable tie, then restart.



5. The tie gun can bundle cable ties in different positions where you want.



Technical data of automatic cable tie machine



Model SWT25100H Remark
Bundle speed 0.7S Related to product’s and nylon cable tie’s size
Applicant cable tie model T25100
Applicant cable tie size W2.5 * L100mm * T1.1mm
Min banding Dia. Ø2 mm
Max banding dia. Ø18 mm Related to product’s material and shape
Maximum tension force 80N 20-80N are adjustable
Bundle productivity 1800 pcs/h Related to product’s size and auxiliary time
Electrical power Host: AC 220V, 50/60 Hz, different plugs
Tool: DC 24V(automatic switching)
Pneumatic pressure 5 Kg/ cm²
Power 1KW
Weight Host:140 kg with wheels
Tie gun: 0.85kg
Size Host: L670 * 670 * 670mm
Gun: L250 * W102 * H64mm
Certificate CE & RoHS



Advantages of automatic cable tie gun



1. An automatic cable tie machine can save 2 workers even more.



2. The tie gun can bundle one cable tie in 0.7S. It is faster than manual bundle.



3. Ergonomic hand shank design, comfortable to hold and operate.



4. Our company has over 50 patents of automatic cable tie guns.



5. The materials used in automatic cable tie machine are high-quality steel from Japanese, and the components are also well-known brands, such as SMC/Omron etc. Good parts will greatly increase the service life of the machine.



6. Multi-functions: auto detecting jammed, auto collecting the waste, temperature control system etc.



7. There are different types of automatic cable tie guns for your choose. And we could give you advices according to your products and cable ties.



Applications of automatic cable tie machine



1. Military industry: Camouflage net bundle or explosives bundle.



2. Appliance industry: On-site assembly of internal wiring harnesses for household appliances, such as oven, washing machines, air conditioning etc.



3. Medical industry: packaging and strapping of drug powder bags



4. Bundling of various large decorative spotlights in the Christmas theme.



60 Hz Electric DC24V 0.7S Nylon Cable Tie Machine 0 60 Hz Electric DC24V 0.7S Nylon Cable Tie Machine 1 60 Hz Electric DC24V 0.7S Nylon Cable Tie Machine 2
Camouflage net On-site assembly Bags filled with drug powder



About packing



Item Polywood Packing size Qty N.W./kg G.W./kg
Vibration Bowl for SWT25100H automatic cable tie machine wooden case 67*55*63cm 1 52 66
Host for SWT25100H automatic cable tie machine wooden case 74*70*85cm 1 75 97





About delivery



1. Lead time for automatic cable tie machine: 12-15working days



2. Lead time for nylon cable ties: 10days



3. The cable tie machine can be shipped by air, DHL, FedEX or by sea.



4. FOB, CIF and EXW.



FAQ



1. Can the cable tie machine be used without air source?



No, it can’t. It needs pneumatic pressure 5kg/cm².



2. Can SWT25100H use nylon cable ties T25080?



No, it can’t and it uses T25100 NYLON cable ties.



3. How about the warranty?



We offer 1 year warranty and tech support forever.
