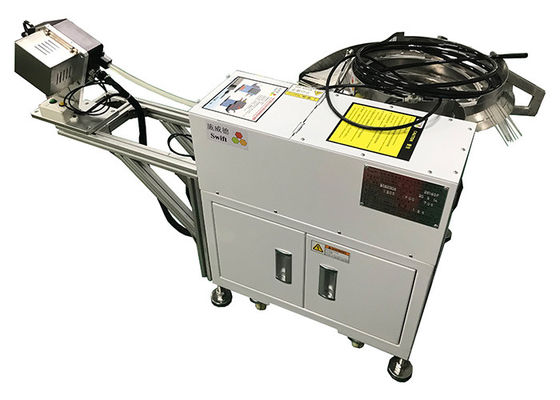

PLC Touch Screen Control DC48V Automatic Cable Tie Machine

PLC Touch Screen Control DC48V Automatic Cable Tie Machine

  • High Light

    DC48V Automatic Cable Tie Machine


    DC48V Auto Cable Tie Machine


    5 Kg/ cm² Auto Cable Tie Machine

  • Bundle Productivity
  • Bundle Tension Forces
    20-80N Adjustable
  • Bundle Dia. For Harness
    2mm - 23mm
  • Applicant Nylon Ties
    T25120, Width 2.5 * Length120mm
  • Tie Gun Type
    Fixed Cable Tie Gun
  • Voltage
    AC220V - AC240V,50/60Hz, Different Plugs
  • Pneumatic Pressure
  • Power
  • Place of Origin
    Shenzhen, China
  • Brand Name
  • Certification
    CE and RoHS
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    wooden case
  • Delivery Time
    12 - 15days
  • Payment Terms
    100% T/T payment
  • Supply Ability

PLC Touch Screen Control DC48V Automatic Cable Tie Machine

PLC Touch Screen Control DC48V Automatic Cable Tie Machine


Cable tie gun is fixed onto the table or production line. Release two hands to handle workpieces.


Feature of nylon cable tie packing machine


1. Wide range of applications: using the machine and cable ties 2.5*120mm to bind items up to 23mm in diameter.


2. The binding force or direction keeps consistent based on your require.


3. Flexible: the automatic cable tie machine can bundle different sizes objects, as long as it is less than max bundle diameter.


4. Stable: PLC control system and touch screen, machine can work 7d*24h.


5. Auto detect jammed: if cable ties jammed in the tie gun or the hose, the machine would stop running and clean jammed cable tie, then restart.


6. The vibration bowl can load 200-300pcs cable ties per time.


Specification of automatic cable tie machine


Model SWT25120F
Applicant cable ties T25120
Cable tie size W2.5 * L120mm
Cable ties material Nylon PA6.6
Min banding Dia. Ø2 mm
Max banding dia. Ø22 mm
Operation speed 1.0S/cable tie
Electrical power Host: AC 220V, 50/60 Hz
FIXED tie gun: DC 48V(automatic switching)
Pneumatic pressure 5 Kg/ cm²
Power 1,000W
Maximum tension force 2 – 8kg adjustable
Productivity 1200 - 1500pcs/h(Related with product’s size and worker’s operating speed)
Weight Host:140 kg with wheels
Tie gun: 4kg
Size Host: L670 * 700 * 680mm
Gun: L284 * W240 * H149mm
Certificate CE & RoHS


Application of nylon cable tie machine


1. Medical industry: silicone tubes and connectors


2. Photovoltaic industry: terminal box of the photovoltaic status indicator/solar junction boxes


3. Wire harness: short or long wire harness, wire cable


4. Other items: Damping and insulation block


Advantage of automatic cable tie gun


1. Cable tie gun is fixed and it is trigger by foot pedal so two hands are free.


2. The bundle force is adjustable from 2kg to 8kg.


3. The bundle speed is 1.0S. The bundle productivity is about 1200 – 1500pcs/h.


4. Our company has developed automatic cable tie gun over 8 years.


5. With CE, RoHS, ISO9001: 2005


6. 1 year warranty and tech support forever.


About packing


Automatic cable tie machine would be packed with pearl foam first then in wooden case.


Packing list

The host machine for SWT25120F *1
The vibration bowl for SWT25120F *1
The FIXED cable tie gun for SWT25120F *1
The tool kit *1
The English manual *1


Packing information

Item Packing size G.W./kg N.W./kg
The host and others 79*75*85cm 90kg 70kg
The bowl 69*59*68cm 72kg 60kg


PLC Touch Screen Control DC48V Automatic Cable Tie Machine 0


About delivery


1. Lead time for machine: about 10-15working days(Busy season).


2. Lead time for cable ties: about 10working days(Busy season).




1. Do you have service centers in other countries?


No, we haven’t.


2. What should I do if the machine has something wrong?


We would help you to solve the problems.


3. Where is your factory?


In Shenzhen China. Warmly welcome to visit us.


4. Does automatic cable tie machine SWT25120F use other different cable ties?


No, 25120F can only deal with T25120 cable ties. Different cable ties, different machines.
