DC24V Automatic Cable Tie Machine

DC24V Automatic Cable Tie Machine

  • High Light

    DC24V Automatic Cable Tie Machine

    ,

    DC24V Auto Cable Tie Machine

    ,

    DC24V Electric Cable Tie Machine

  • Product Name
    Electric Cable Tie Gun
  • Bundle Forces
    Max 80N, Adjustable
  • Cable Tie Spec
    W2.5 * L80mm * T1.1mm
  • Minimum Banding Diameter
    Ø2.0mm
  • Maximum Banding Diameter
    Ø14mm
  • Operation Speed
    0.7S
  • Pneumatic Pressure
    5kg/cm²
  • Voltage
    AC220V, 50/60Hz, Euro Plug
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Swift
  • Certification
    CE
  • Model Number
    SWT25080H
  • Minimum Order Quantity
    1
  • Price
    negotiation
  • Packaging Details
    Packed in wooden case
  • Delivery Time
    10 -12 working days
  • Payment Terms
    100% T/T
  • Supply Ability
    100pcs per month

DC24V Automatic Cable Tie Machine

DC24V Automatic Cable Tie Machine



DC24V Handheld Electric Cable Tie Gun With One Key Control Bundle

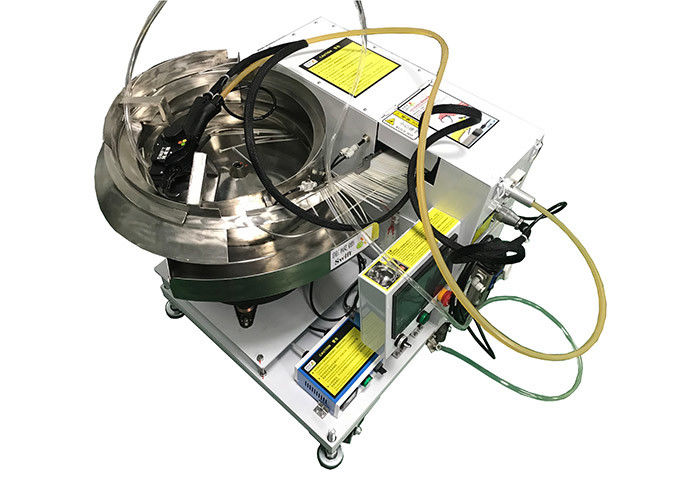

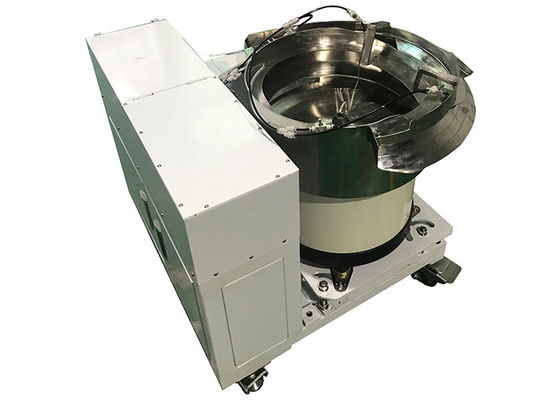

The cable tie gun is connected to a host machine. Loose cable ties can be put into a vibration bowl in the host machine. Once operator pulls the trigger of the tie gun, cable ties would be tied automatically.



Application of automatic cable tie gun



Applicant cable ties Nylon cable ties; size: width2.5mm * length80mm * thickness 1.1mm; model T25080
Applicant products Ask to tie nylon cable ties in products, such as wire harness, silicone connectors etc.
Industry Wire harness, medical, home appliance etc.



Working process of automatic cable tie machine



Operation process: put nylon zip ties into vibration bowl –distribute and load nylon ties – put wire harness/tubes or other products in the middle of jaws of cable tie gun – pull the trigger of tie gun - finish bundle and collect the waste into a box.



Technical parameters of automatic cable tie machine



Model SWT25080H Function Auto bundle nylon ties
Applicant nylon zip ties Width 2.5mm Applicant products’ size Max bundle diameter for wire harness: 14mm
Length 80mm Max bundle diameter for tubes: 13mm
Thickness 1.1mm Min bundle diameter:2mm
Bundle speed 0.7S per cable tie Bundle tension force max 80N
Bundle productivity 3,000pcs/h Power 1,000W
Gross weight 140kg Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm² Size L670 * W670 * H670
Tie gun power DC24V Tie gun weight 0.84kg



Functions of automatic cable tie tool



1. The electric tie gun can fast bundle nylon zip ties in short time. The working effect is 2 times than manual.



2. Once you pull the trigger, the tie gun would automatically tie and tighten nylon ties, then cut off and collect the tip waste materials into a box.



3. The binding forces are adjustable. To turn a knob to get smaller or bigger force.



4. The tie gun can be moved at random.



5. Ergonomic hand shank design, comfortable to hold and operate.



6. Could be fixed as desktop type, and be applied to full automation line.



7. Be suitable for tightening those components which has step features.



About packing



Be packed in wooden cases(Polywood).



About delivery



Machine lead time: 10working days.

Nylon cable ties: 7days.



DC24V Automatic Cable Tie Machine 0



FAQ



1. Does the machine have CE certificate?



Yes, our machines have passed CE.



2. How about the warranty?



We offer 1 year warranty and tech support forever.



3. What should we do if the machine has somthing wrong?



If the machine can not work well, it would give the reasons and solution in the touch screen. Or please take some videos to us, and we would guide you how to solve through videos.
