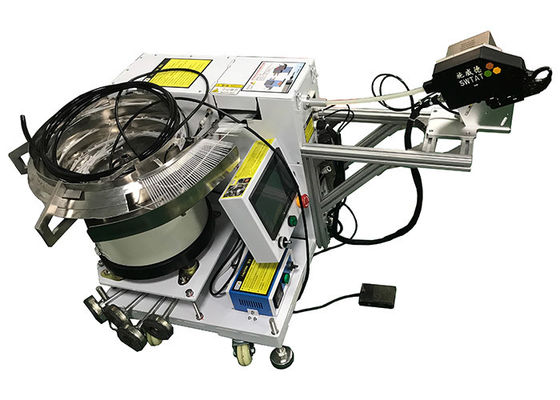

AC220V Automatic Tie Wrap Machine
AC220V 0.9S Tying Automatic Tie Wrap Machine For Harness Assembly
SWT25100F automatic tie wrap machine uses nylon zip ties T25120 to bundle harness, soft tubes/connectors or copper tubes. It mainly improves the bundle speed and increase the products capacity.
Working process of automatic tie wrap machine
Operation process: put nylon zip ties into vibration bowl – load and distribute nylon ties – put wire harness/tubes or other products in the middle of jaws of cable tie gun – tread the foot pedal - finish bundle and collect the waste.
Technical data if automatic bundle cable tie machine
|Automatic cable tie gun model||SWT25100F|
|Bundle speed||0.9S per cable tie(Related to product size)|
|Applicable cable ties model||T25100|
|Applicable length/width/thickness of cable ties||100mm/2.5mm/1.1mm|
|Applicable wire harness/tubes diameters||
ø2mm – ø18mm for wire harness;
|Only cable tie gun power||DC48V|
|Host size||L670 * W670 * H660mm|
|Fixed cable tie gun size||L284*W240*T150mm|
|Fixed cable tie gun weight||4.0kg/pcs|
|Bundle tension force||Adjustable, max 80N|
Nylon cable ties requirements of automatic cable tie machine
1. Cable ties material: good quality nylon PA66
2. Cable ties size: W2.5 *L100 * T1.1mm; head size: L4.8*W4.8*H3.8mm
3. Tensile strength: 8kg
4. Shape: no burr/flash, without deformed
Features/functions of automatic cable tie gun
1. High level automation: treading foot pedal, automatically finishing cable ties wrapping, tightening and cutting.
2. The waste material also would be collected into a box.
3. The bundle speed is 0.9S per cable tie. It is 2times faster than by-hand bundle.
4. PLC control system and touch screen. It is easy to manage parameters.
5. The bundle quality is good. And the binding effect is consistent.
6. High steady. The machine can keep working 8hours or even more.
7. Voltage: AC220V, 50/60Hz; pneumatic pressure: 5kg/cm²
All machines would be packed in wooden cases.
1. Lead time: 10working days after payment.
2. Could be shipped by air, DHL etc.
3. 1 year warranty and tech support forever.
|1. Does it produce nylon cable ties?||1. No, it doesn’t. It uses and bundle them.|
|2. Why do you ask us to measure the bundled product diameter?||2. Because one machine has its own max bundle diameter, and it can’t bundle the bigger.|
|3. Do we need to offer air source to the machine?||3. Yes, the machine needs the air 5kg/cm².|
|4. Do you have service centers in other countries?||4. No, we don’t. If have any doubts, pls free to contact us.|
|5. What is the warranty?||5. 1 year warranty and tech support forever.|
