Heavy Duty Wire Tie Tool Pneumatic System Fast Binding With 0.7s / Cable Tie

Name: Heavy Duty Wire Tie Tool Pneumatic System Fast Binding With 0.7s / Cable Tie
Brand: Shenzhen Swift Automation Technology Co., Ltd.
SKU: SWT25100H
Price: 8,250.00 USD
Availability: InStock

Brand Name:	SWIFT
Model Number:	SWT25100H
MOQ:	1pcs
Price:	Negotiation
Delivery Time:	10days
Payment Terms:	100% T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS

Product Name:

Automatic Cablet Tie Tool

Model:

SWT25100H

Cable Ties:

T25100

Tie Width:

2.5mm

Tie Length:

100mm, 4inch

Power Supply:

AC220V, 50/60Hz

Packaging Details:

wooden cases

Supply Ability:

100pcs/month

Highlight:

cable tie installation tool

bundle wrapping machine

Product Description

Heavy Duty Use Cable Tie Tool Quickly Automatic Bundling And Cutting

SWT25100 cable tie tool is ideal for heavy duty use. Operator only puts 200pcs bulk cable ties into the machine at random and pulls the trigger, then the machine would automatically tension and tighten plastic cable ties until the tie is tightened around the wire harness.

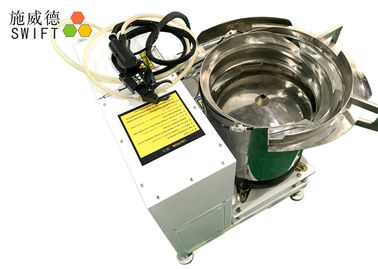

Machine components

1. A handheld cable tie gun: pull the trigger, automatic wrapping, tightening, cutting cable tie.

2. A vibration bowl: sort cable ties tidily.

3. PLC control system and touch screen: manage parameters setting, dual languages display.

4. Pneumatic system: convey cable ties.

5. Host and frame: support the vibration bowl, the electric system etc.

Advantages

1. Bulk cable ties can be bound items automatically, without hands threading, tightening.

2. Achieve fast binding. It takes 0.7S to bundle one cable tie.

3. One of our customers can bundle about 50,000cable ties a day when to use our machine to bind cable ties.

4. The binding forces are adjustable.

SWT25100H base data

No. 1	Description	Automatic cable tie cutting tool
2	Brand	SWIFT
3	Model	SWT25100H
	Features/advantages	1. Be suitable for deal with numbers of bulk cable ties bundling. 2. Automatic binding cable ties until wires bundle is tightened. 3. Automatic cutting the excess tail off and leaving a clean and neat installation. 4. Automatic collecting the excess tail into a box or a tin(optional) 5. Take 0.7S to bundle one cable tie.
4	Cable ties details	Ties type		Bulk cable ties
		Tie model		T25100 (same size can be used in this machine)
		Tie width		2.5mm
		Tie length		100mm
		Tie thickness		1.1mm
		Tensile strength		8kg
		Quantity/bags		1,000pcs
5	Usage/per time in vibration bowl	250pcs enough
6	Max bundling Dia. for wire	17mm
7	Max bundling Dia. for tube	16mm
8	Min bundling Dia.	2mm
9	Bundling speed	0.7S
10	Cable tie gun details	Power		DC24V auto switch
		Size		L25 * W10 * T6.4cm
		Tension forces		Adjustable by turn knob
11	Power supply	AC220V, 50/60Hz
12	Pneumatic pressure	5kg/cm²
13	Max Power	1,000W
14	Certificates	CE, RoHS
15	Packing details	Host machine/wooden case	Packing size		L760 * W730 * H860mm
			N.W./kg		80
			G.W./kg		100kg
		Vibration bowl/wooden case	Packing size		L710 * W590 * H940mm
			N.W./kg		55kg
			G.W./kg		65kg
		Total wooden cases	2pcs
		Total N.W./kg	135kg
		Total G.W./kg	165kg

Trading details

1. Delivery date: normally 10days.

2. Payment terms: 70% TT payment before production and 30% balance payment before ship.

3. Transportation: by sea, by air, by express.

Our factory picture

The injection molding machine

Heavy Duty Wire Tie Tool Pneumatic System Fast Binding With 0.7s / Cable Tie 0
