| Brand Name: | SWIFT |
| Model Number: | SWT25100F |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 10-15 working days |
| Payment Terms: | 100% T/T payment before ship |
1800pcs/h Tighten 0.9S Automatic Cable Tying Tool For Seat Belt
1800pcs/h Tighten 0.9S Automatic Cable Tying Tool For Seat Belt Remainder Sensors Cable

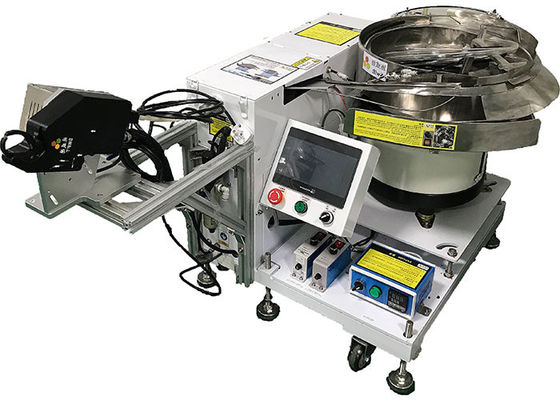

The automatic cable tie machine SWT25100F is with a fixed cable tie gun. The tie gun tool can be fixed in the table or other places you want. It is triggered by foot pedal. The tying speed is 0.9S pre cable tie.
Description of cable tie gun
1. When operator treads the foot pedal, nylon cable tie would be transferred into the tie gun, automatically wrapped, tighten and cut off.
2. The bundle speed is 0.9S per cable tie. Operator can tie 1800-2400pcs nylon cable ties or more.
3. Metal construction, steel alloy frame of tie gun.
4. Operator turns a knob in the tie gun then adjusts the tension forces.
5. Automatic cable tie machine can deal with loose cable ties T25100. Operator needs to put loose nylon ties into vibration feeder.
6. Automatically detecting jammed: the cable tie machine could detect if cable ties are jammed, automatically clean them and restart.
7. Automatic cable tie gun could be applied to full automation line.
Information of automatic cable tie machine
| Model | SWT25100F |
| Cable tie gun | Cable tie gun – Fixed type |
| Batteries included | No |
| Batteries required | No |
| Applicable cable tie width | 2.5mm |
| Applicable cable tie length | 100mm |
| Applicable cable tie thickness | 1.1mm |
| Applicable cable tie head | L4.8 * W4.8 * H3.8mm |
| Bundle diameter | 2mm – 18mm |
| Bundle forces | 20N - 80N, adjustable |
| Bundle speed | 0.9S/cable tie |
| Bundle productivity | 2400pcs/h, including the time of picking and placing products |
| Host machine | L67*W66*H67cm |
| Cable tie gun | L278*W240*H149mm |
| Voltage | AC220V, 50/60Hz |
| Pneumatic pressure | 5kg/cm² |
| Certificates | CE, RoHS |
Advantages of automatic cable tie tool
1. Clients speak highly of our automatic cable tie machines. They help client a lot in their factories.
2. Automatic cable tie gun works stable. They are much better than other brand cable tie machines.
3. Our factory develops automatic cable tie machines over 8 years and has more than 50 patents. We are very professional in this industry and could give you suggestions based on our experience.
Please contact our sales team if you have any questions on automatic cable tie machines.
Applications
| Applications |
| 1. Cable harness in the board, PCBA |
| 2. Sealed bags in food industry/medical industry |
| 3. Seat belt remainder sensors with cable, copper tubes of air conditionings, refrigerators |
Trade terms
1. Payment: 100% TT before ship
2. Lead time: 10-15working days
3. Packing: Wooden cases
4. Warranty: 12months and tech support forever
5. Sea port: Shenzhen, Guangzhou
FAQ
1. What are the requirements for bundled products?
SWT25100F automatic cable bundle machine deals with nylon cable ties T25100, NOT other brand cable ties. The max bundled diameter of products is 18mm.
2. Do you have service center in other countries?
No, we don't have.
3. What can we do if the automatic cable tie gun has any problems?
Before buying, please consult and confirm which nylon cable tie machine is suitable.
After buying, please send videos and pictures to our sales men if there are any problems. And we would help you solve them. Our cable tie machine is good and works well. There are few questions.
Video
Video
Video
Video
Video
|
