Electric Fast 150mm Nylon Cable 1.0S Auto Packing Machine

Electric Fast 150mm Nylon Cable 1.0S Auto Packing Machine

  • High Light

    1.0S Auto Packing Machine


    150mm Nylon Cable Packing Machine


    1.0S Nylon Cable Packing Machine

  • Product Name
    Automatic Wire Tie Tool
  • Cable Tie Spec
    T36150, 3.6 * 150mm
  • Minimum Banding Diameter
  • Maximum Banding Diameter
  • Operation Speed
  • Bundle Capacity
    1800-2400pcs/h(Relater To Time Of Placing And Picking Goods))
  • Bundle Force
    20N - 80N Adjustable
  • Pneumatic Pressure
  • Place of Origin
    Made in china
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Packed in wooden case
  • Delivery Time
    15 working days after received your payment
  • Payment Terms
    100% T/T
  • Supply Ability
    100pcs per month

Electric Fast 150mm Nylon Cable 1.0S Auto Packing Machine

Electric Fast 150mm Nylon Cable 1.0S Auto Packing Machine

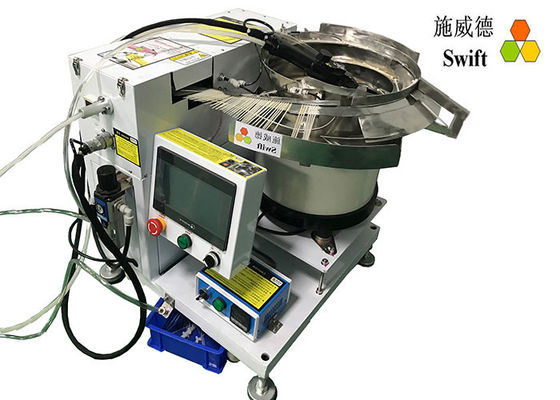

Electric Fast 1.0S Automatic Packing Machine For Nylon Cable Ties 150mm Length


Handheld cable tie gun for nylon cable ties T36150 can fast tie 1800pcs nylon cable ties per hour.


Description of automatic cable bundle machine


1. Automatic cable tie machine is made from metal. It is more durable than plastic.


2. Ergonomic hand design, it is comfortable to hold.


3. Nylon cable ties would be packed, tightened and cut off once operator pushes the trigger of the tie gun.


4. The waste material would be collected into a box.


5. Cable tie gun could be fixed as desktop type and could be applied to full automation line.


6. The binding forces are adjustable.


7. Voltage: AC220V, 50/60Hz; Pneumatic pressure: 5kg/cm²


Information of automatic packing cable tie machine


Model SWT36150H
Cable tie gun Handheld cable tie gun
Batteries included No
Batteries required No
Applicable cable tie width 3.6mm
Applicable cable tie length 150mm
Applicable cable tie head L6.5 * W6.5 * H4.7mm
Bundle diameter 3mm - 31mm
Bundle forces 20N - 80N, adjustable
Bundle speed 1.0S/cable tie
Bundle productivity 1800pcs/h, related with the time of picking and placing products, product size
Host machine L89*W90*H79cm
Cable tie gun L271*W116*H74mm
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm²


Advantages of cable tie packing machine


1. One automatic cable tie machine can save 2 workers labor.


2. To a large extent, it will reduce the work intensity of workers and save labor time.


3. Automatic detecting jammed cable ties: cable tie machine would stop running and clean them if cable ties are jammed.


4. The automatic cable tie machine counts quantity only after the operation succeeded.




Tie pockets of bags, cable harness and small things, or fix positions etc.


1. Tie pockets of bags


Pockets of bags filled with rice, iron powder, medicine powder.


2. Fixing of Christmas decoration rope lights with various shapes, such as deer, five-pointed star shape.


3. Oil pipes in automobile industry


Trade terms


Sea port Shenzhen
Payment 100% TT before ship
Lead time 10-15working days
Packing Wooden cases
Warranty 12 months and tech support forever


Packing information


Packing list


Host machine for SWT36150H *1
Cable tie gun for SWT36150H *1
Vibration bowl for SWT36150H *1
Tool kit *1
English manual *1


Packing sizes


Item Picking size N.W./kg G.W./kg
Vibration bowl L79 * W6 7* H70cm 67 90
Host machine, cable tie gun and others L85*W81*H95cm 74 105




1. Does SWT36150H automatic cable tie gun use T36150 nylon cable ties only?


Yes, it does. One automatic cable tie gun can deal with one kind of nylon cable ties only.


Different cable ties of different brands, different cable tie machines.


2. How about the bundle speed of automatic cable tie machines?


Different types of automatic cable tie guns have different bundle speeds. Please choose suitable cable tie guns according to your product bundle diameters.


3. How to choose suitable automatic cable tie machines?


If bundle diameters of your product are from 3mm to 31mm, please choose SWT36150H or SWT36150F. H means the handheld cable tie gun. F means fixed cable tie gun. You could decide to use which one based on your products.
