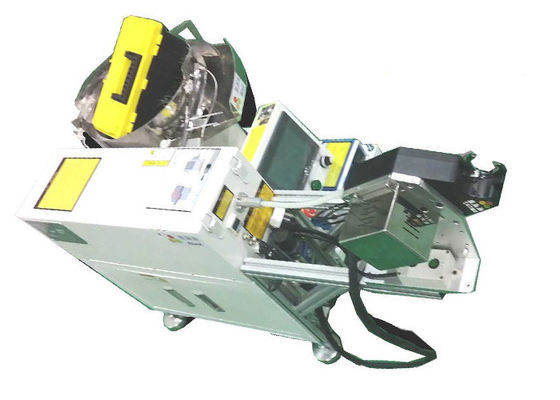

AC220V 80N Automatic Cable Tie Machine For Packing Fast Tie Wraps

AC220V 80N Automatic Cable Tie Machine For Packing Fast Tie Wraps

  • High Light

    80N Automatic Cable Tie Machine

    ,

    AC220V Automatic Cable Tie Machine

    ,

    0.9S Automatic Cable Tie Machine

  • Name
    Automatic Cable Tying Tool
  • Tension Forces
    20N - 80N Adjustable
  • Bundle Capacity
    1800-2400pcs/h
  • Bundle Speed
    0.9S
  • Applicable Cable Ties
    T25100, W2.5mm * L100mm
  • Bundle Diameters
    2mm - 18mm
  • Voltage
    AC220V, 50/60Hz, Euro Plug
  • Pneumatic Pressure
    0.5Mpa
  • Place of Origin
    China
  • Brand Name
    SWIFT
  • Certification
    CE, RoHS
  • Model Number
    SWT25100F
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden cases
  • Delivery Time
    10-15 working days
  • Payment Terms
    100% T/T payment before ship
  • Supply Ability
    100pcs/month

AC220V 80N Automatic Cable Tie Machine For Packing Fast Tie Wraps

AC220V 80N Automatic Cable Tie Machine For Packing Fast Tie Wraps



Automatic cable tie machine can automatically tie nylon cable ties very fast. When operator put nylon cable ties into the feeder bowl and treads foot pedal, nylon cable ties would be transferred into tie gun, then wrapped, tightened and cut. That only takes 0.9S. One machine can save 2 workers even more.



Description of automatic cable tie machine



1. The tension forces are adjustable from 20N to 80N.



2. When operator treads foot pedal, nylon cable ties would be transferred into the tie gun, then wrapped, tightened and cut.



3. Automatic cable tie machine uses loose cable ties T25100, width2.5 * length100mm.



4. Cable tie gun is fixed in the table or assembly line.



5. Bundle cycle time: 0.9S per cable tie



6. Automatic cable tie installation gun can provide bigger tightening force than other methods. When manual tools or other type of machine could not tighten the harness with PVC sleeve or bags sealing, then this cable tie gun might be your better choice.



7. The zip tie gun machine needs electric AC220V and pneumatic pressure 0.5Mpa.



Information of nylon cable tie machine



Model SWT25100F
Cable tie gun Fixed cable tie gun
Batteries included No
Batteries required No
Applicable cable tie model T25100
Applicable cable tie width 2.5mm
Applicable cable tie length 100mm, 3.9inch
Applicable cable tie head L4.8 * W4.8 * H3.8mm
Bundle diameter for wire 2 – 18mm
Bundle diameter for tube 2 – 16mm
Bundle forces 20 - 80N, adjustable
Bundle speed 0.9S/cable tie
Bundle productivity 1800 - 2400pcs/h, including the time of picking and placing products
Host machine L67*W66*H67cm, 140kg
Cable tie gun L28 * W24 * H15mm
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm²



Advantages of automatic cable tie machines



1. Automatic cable tie gun machine can deal with one tie wrap in 0.9 seconds.



2. Auto cable tie gun can save 2 workers.



3. The bundle tension forces are easy to adjust. Please turn a knob in the zip tie gun.



Applications



1. Soft coil copper tubing, copper refrigeration pipes



2. Wire harness with PCBA, outer stators



3. Nettings material industry and military industry.



4. Cut incision is smooth.



Trade terms



Sea port Shenzhen, Guangzhou, Huizhou
Payment 100% TT before ship
Lead time 15working days
Packing Wooden cases
Warranty 1 year and tech support



Packing details



Item Packing size G.W./kg N.W./kg
Vibration bowl L67*W55*H63cm 69kg 52kg
Host machine and others L74*W70*H85cm 100kg 94kg



AC220V 80N Automatic Cable Tie Machine For Packing Fast Tie Wraps 0



FAQ



1. What are the requirements for nylon cable tie installation machine?



Cable tie installation machine asks for good nylon cable ties. These zip ties must be straight without deform.



2. How can I adjust the binding forces?



In the tie gun, there is a knob to turn to get the binding forces that you want. Nylon cable ties would be cut once reaching the force. Near the knob, there is a small window. You could see the white number. Lowe number = lower tension force



3. What warranty period covers this automatic cable tie machine?



1 year warranty and tech support forever.
