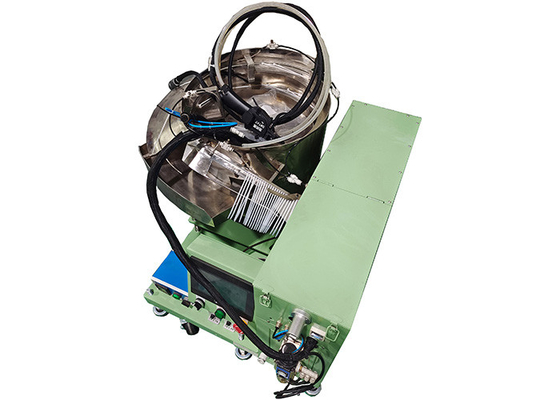

SWT25120H Cable Tie Tension Tool For Harness Bundle 0.8S 22mm dia.
Automatic cable tie tool SWT25120H can bundle wire harness dia up to 22mm. This cable tie gun uses nylon cable tie 120mm long. Nylon cable ties are called T25120.
Performance characteristics of automatic cable tie tension tool
1. The zip tie tool for bundle is used to bind the mess wire harness or fix tube connectors and so on. The bundle speed is about 0.8S.
2. The touch screen displays in full Chinese and English. It can be set different languages based on your need.
3. Adopt imported brand PLC control, provide stable working procedures, imported drivers, high degree of automation.
4. The device binding speed can directly adjust the corresponding parameters on the touch screen.
5. The cable tie gun has the advantages of sensitive action, fast binding speed, adjustable binding force and stable performance.
6. The binding forces can be set, such as 2kgf,4kgf so on.
7. The cable tie machine is used for binding on the assembly line. The automatic cable tie machine can improve the bundle speed and save time.
Technical parameters of nylon cable tie machine
|
Model |
SWT25120H |
Power supply | 220V, 50Hz/60Hz |
| Bundled speed |
0.8S |
Pneumatic pressure |
5kg/cm2 |
| Bundled item size |
2-22mm |
Power |
1KW |
| Host machine size |
L71*W73*H67cm |
Cable tie gun size |
L25*W10*T6.4cm |
| Host machine kg | 150 kg | Cable tie gun weight |
0.86kg |
Delivery display of cable tie machine
When the cable tie machine is shipped, we will use stretch film and pearl cotton to wrap it around for protection and then build a wooden frame to avoid problems during transportation and damage the interests of customers.
RFQ's can be emailed to sales@sz-swift.com
Include the following documentation:
Clients can chose automatic cable tie machines based on these details or inform us then, we could suggest one auto cable tie machine for you.
FAQ
| Question | Answer |
| 1. Different cable ties can be used in automatic cable tie bundle machine? |
No, different cable ties can be used in different auto cable tie machines. And automatic cable tie guns ask for good quality nylon cable ties. |
| 2. How long is it for the warranty? | 1 year and tech support all life. |
| 3. Do you have engineers in other country? | No, now if the automatic cable tie machine has anything wrong, our company can help clients to solve the problems. And they use SWIFT cable tie machine very well. |
Our products are sold all over the world, you can rest assured.
