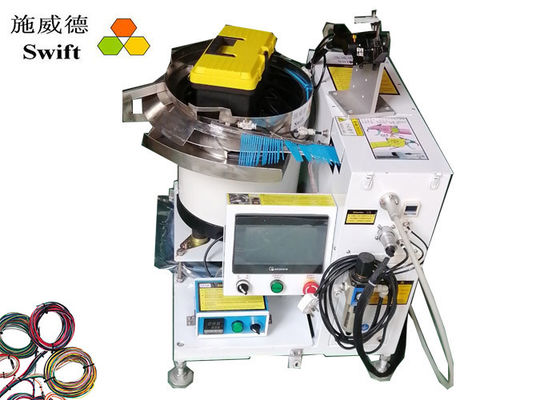

Quick Tying 1 Second Automatic Cable Tie Tool For Movable Electric Oven Factory Using
Touch the trigger one time, the automatic cable tie tool would start to bundle up your products with nylon cable ties. It is quickly, about 0.7S per zip tie.
Features / Advantages
1. It is a fast bundle tool. It has a small automatic cable tie gun. Easy to hold.
2. Dealing with lots of nylon cable ties. The bundle speed is 0.7S/single cable tie.
3. Pull the cable tie gun trigger, the machine would start to work, including feeding cable tie into the tool then wrapping and tightening, cutting off zip tie.
4. Compared with hand bundle, it is much faster. One machine replaces at least 2workers.
5. The machine is good and steady. Clients speaks highly of our automatic cable tie tools.
6. Voltage is AC220V - AC240V, 50/60Hz
SWT25100H Technical Data
| Name | Automatic cable tie tool | Model | SWT25100H |
| Application | fast bundle nylon cable ties | Cable ties size | W2.5 * L100mm |
| Bundle speed | 0.7S | Cable ties material | Nylon 66 |
| Strapping diameter range | 2mm - 18mm | Certificates | CE, RoHS, Reach |
| Power | 1000W | Pneumatic pressure | 5kg/cm2 |
| Handheld cable tie gun | DC24V | Voltage | AC220V - AC240V, 50/60Hz |
Other models
| Model | SWT25120H | SWT36150H |
| Using nylon cable ties size | W2.5 * L120mm | W3.6 * L150mm |
| Bundle speed | 0.8S | 1.0S |
| Strapping diameter range | 2mm - 22mm | 3mm - 31mm |
| Cable tie gun type | Handheld cable tie gun | Handheld cable tie gun |
| Voltage | AC220V - AC240V, 50/60Hz | AC220V - AC240V, 50/60Hz |
Application
Electric oven factories usually use quantities of nylon cable ties, they hire many workers to bundle wire harness in the oven machine.
Now, labor cost are increased fast, so automatic cable tie tools is the best choice for you. It can fast bundle nylon cable ties.
The Details That You Must Know
1. Automatic cable tie tools can quickly strap nylon cable ties. Cable ties are made of nylon PA 66. The auto cable tie tools can not bundle steel stainless cable ties or other non-nylon zip ties.
2. Nylon cable ties must be in good quality. That means they are straight, no deformation, no flash/burr, stronger. If they are bad, they get fragile in cold weather so that they broke off when to bundle. They are weak because they are made of bad raw materials and their molds are defective.
We have attended the fairs in 2019.
1. Wire Harness Show in USA.
2. Productronica China in Shanghai.
3. Others.
In USA
FAQ
1. What is the delivery time?
About 15days.
2. Have the automatic cable tie tools passed CE?
Yes, they have passed CE.
3. Does the automatic cable tie machine have wheels?
Yes, it does. There are 4 wheels and it is easy to move.
Our services cover all industries and reach all parts of the world.
