0.8S Speed Automatic Nylon Cable Tying Machine 80N adjustable

0.8S Speed Automatic Nylon Cable Tying Machine 80N adjustable

  • High Light

    0.8s Nylon Cable Tying Machine

    ,

    80N Nylon Cable Tying Machine

    ,

    0.8S Auto Cable Tying Machine

  • Name
    Automatic Zip Tie Machine
  • Cable Tie Spec
    T25080(Only), W2.5 * L80mm
  • Bundle Capacity
    1800-2400pcs/h
  • Bundle Forces
    20N - 80N Adjustable(5forces)
  • Max Bundle Dia.
    12mm
  • Min Bundle Dia.
    2mm
  • Operation Speed
    0.8S Per Cable Tie
  • Electric Voltage
    AC220V, 50/60Hz
  • Place of Origin
    China
  • Brand Name
    SWIFT
  • Certification
    CE
  • Model Number
    SWT25080D
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiation
  • Packaging Details
    Wooden cases
  • Delivery Time
    12 - 15 working days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

0.8S Speed Automatic Nylon Cable Tying Machine 80N adjustable

0.8S Speed Automatic Nylon Cable Tying Machine 80N adjustable

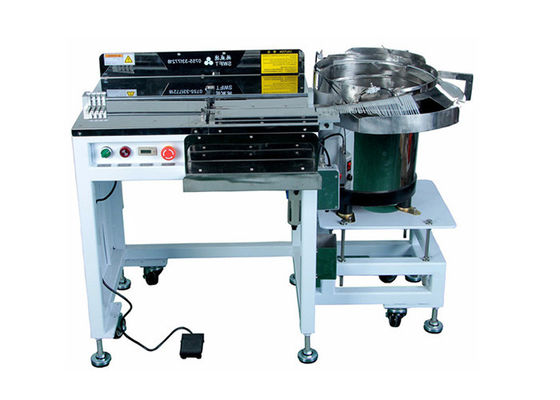

Desktop automatic cable tie machine SWT25080D could use shortest nylon cable ties 80mm. It can be used to tie simple wire harness.

Features of automatic nylon cable tie machine

1. Operator puts loose cable ties T25080 into the vibration feeder and puts wire harness to the position of jaws, then treads foot pedal, auto cable tie machine would finish tying and cutting nylon cable ties.

2. The bundle diameters for wire harness: 2mm – 12mm.

3. The binding forces are adjusted by PE engineer.

4. One machine equals 3 workers’ workload.

5. Using loose cable ties, vibrating feeding, moving cable ties to the position of jaws.

6. The binding force is controlled by mechanical device and the binding force would be more accurate and stable.

7. Voltage: AC220V, 50/60Hz; Pneumatic pressure: 3kg/cm2

Specification of nylon cable tie machine

Model SWT25080D
Cable ties model T25080
Cable tie size W2.5 * L80mm * T1.1mm
Cable ties material Nylon PA 6.6
Min banding Dia. Ø2 mm
Max banding dia. ø12 mm
Operation speed 0.8s single cable tie
Pneumatic pressure 3 Kg/ cm²
Power 1,000W
Maximum tension force 80 N
Productivity 3,000 pcs/h
Weight 120 kg , with 4 wheels
Size L1040 * 640 * 750mm
Certificate CE & RoHS


Application

1. Wire harness, wire cable

2. PVC sleeve tubes

Advantages of nylon cable tie machine

1. The bundle speed of nylon cable tie machine is faster than manual binding.

2. An automatic bundle nylon cable tie machine replaces 3 workers.

3. The nylon cable tie machine is triggered by foot pedal. Once operator pushes it, nylon zip ties are tied automatically. Hands are free.

4. Our factory has over 50 patents and is serving more than 400 clients.

0.8S Speed Automatic Nylon Cable Tying Machine 80N adjustable 0

About packing

The automatic bundle machine would be packed in wooden case.

About delivery

1. Lead time for nylon cable tie tying machine: 12-15 working days

2. Lead time for nylon cable ties: 2days if in stock.

3. Could be shipped by air/DHL/sea

FAQ

1. Does the machine have English manual?

Yes, it has.

2. What warranties does your machine carry?

1 year warranty and tech support forever.
